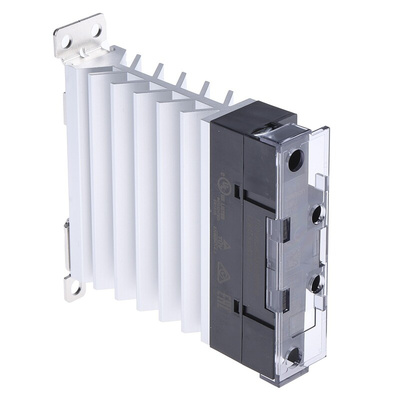

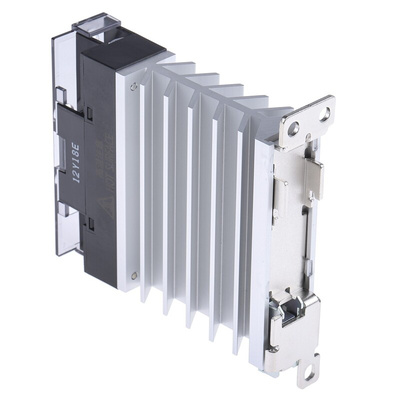

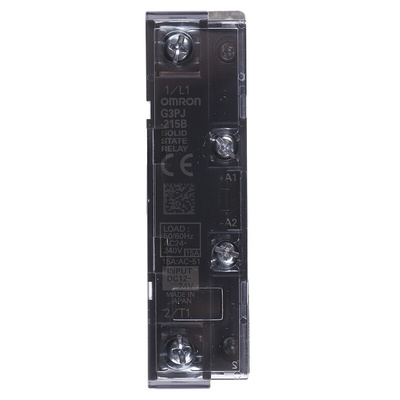

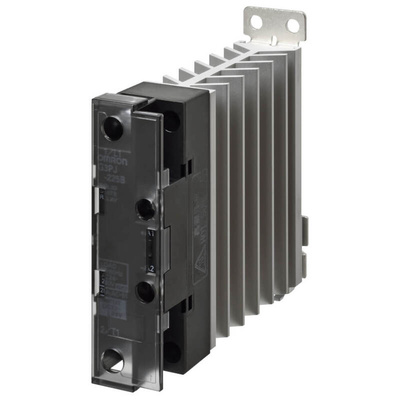

G3PJ-215B DC12-24, Omron G3PJ Series Solid State Relay, 15 A Load, DIN Rail Mount, 264 V ac Load, 24V dc Control, Реле

Omron G3PJ Series SSR

G3PJ solid state relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. G3PJ Series single phase solid state relays with heat sinks are suitable for a wide range of applications.

SCCR of 10kA
Surge pass protection
Both push-in and screw terminal input terminals available.
DIN Rail mount
RoHS compliant

OMRON Solid State Relay, Single Pole, 24 to 240V AC Load Voltage - G3PJ Series - G3PJ-215B DC12-24

Hand over control of your single-phase system to this solid state relay from OMRON. Its triac output type means it's made for managing alternating current, so it's the pick of the bunch for lighting control or low-power motor-starting jobs. A rapid 1ms operating time means it delivers an instant response to boost your workflow. Thanks to screw terminals, installation is done in a jiffy and you'll only need a screwdriver. As there are no moving parts, wear is minimised and you won't have to worry about maintenance.

Features & Benefits

• Performs reliably in temperatures between -30°C to +80°C
• DIN rail mounting makes set-up swift and straightforward
• LED indicator displays the operating status for speedy monitoring
• Off-state leakage of 10mA maximum keeps energy waste minimal

Applications

• Industrial process control
• Pharmaceutical manufacturing
• Mechanical engineering

How big is this SSR?

It has slim dimensions of 22.5 (L) x 100 (D) x 100mm (H), so it's ideal for use in tight areas.

Does the relay have any noise-reducing features?

Yes. It's a zero-cross-switching type, which means it doesn't turn on until the load voltage reaches zero. This reduces residual noise and ensures performance is smooth.

Standards

cULus, TUV, EN 60947-4-3.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
