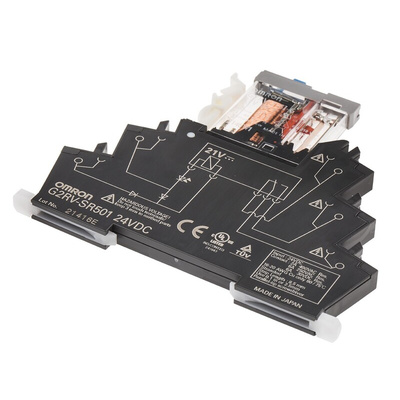

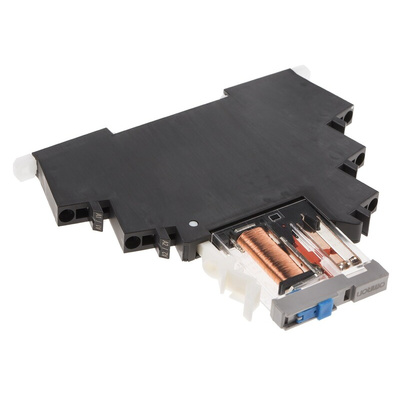

G2RV-SR501 DC24, Omron DIN Rail Power Relay, 24V dc Coil, 6A Switching Current, SPDT, Реле

G2RV-SR Slim I/O Relays With Low Profile Socket

Omron G2RV-SR slim I/O relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G2RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.

Slim design
LED operating status
Push-In Plus terminal blocks

OMRON Power Relay, 300mW Coil Power, SPDT Contact Configuration - G2RV Series - G2RV-SR501 DC24

Controlling large circuits is a breeze with this OMRON power relay. By supplying it with 24V DC, you can make or break a connected circuit with a voltage rating of up to 440V AC, like a motor or outdoor lighting system. As it only draws 13.5mA, this is an efficient pick that doesn't guzzle electricity. Tipping the scales at just 30g, it's a lightweight contender that doesn't put strain on your DIN rail.

Features & Benefits

• Dielectric strength of up to 4,000V AC for protection against electrical surges
• Withstands temperatures of -40°C to +55°C without freezing or condensation, so it's suitable for harsh work areas
• Built-in LED indicator allows for easy status monitoring
• Controls DC voltages of up to 125V, so it's a versatile piece of kit

Applications

• Automotive industry
• Telecommunications sector
• Commercial buildings

How reliable is this power relay?

This product is designed to operate at least 5 million times, so you can rest assured it's highly reliable.

Can this unit cope with heavy use?

Yes, it handles up to 18,000 mechanical operations every hour, so it holds its own in fast-paced applications.
