G2RV-SR700 AC110, Omron DIN Rail Power Relay, 48V dc Coil, 6A Switching Current, SPDT, Реле

G2RV-SR Slim I/O Relays With Low Profile Socket

Omron G2RV-SR slim I/O relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G2RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.

Slim design
LED operating status
Push-In Plus terminal blocks

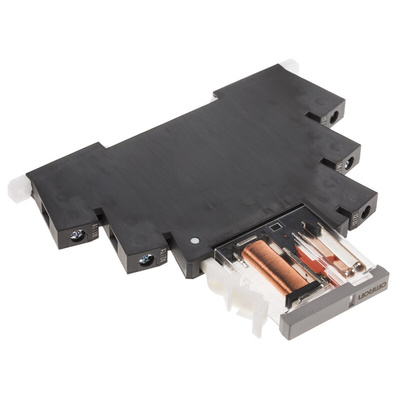

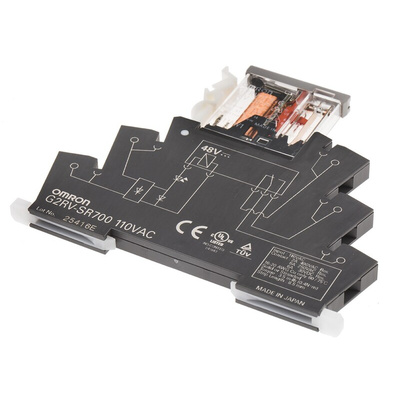

Omron G2RV Power Relay, Screw Terminal, 90X78X6.2mm - G2RV-SR700 AC110

This is a slim I/O relay from the G2RV-SR series. It features an operating indicator LED and a mechanical indicator. With a rated output of 30 VDC 6 A and 250 VAC 6 A, this relay offers a single-pole double-throw (SPDT) output configuration. The coil operates at 110 VAC with a frequency of 50 Hz (5.9 mA) or 60 Hz (5.9 mA). Its compact design, measuring 6 mm wide, makes it ideal for space-constrained control panels. The G2RV-SR700 AC110 ensures reliable switching performance for various applications

Features & Benefits

• Slim design ideal for compact panels and equipment, enabling space-saving solutions
• Ag alloy contact material enhances contact reliability and longevity
• Wide voltage range (110 VAC) suitable for various power supply conditions
• Insulation resistance (1000 MΩ min.) ensures electrical safety
• Vibration and shock resistance withstands harsh environments
• DIN track mounting for easy installation and compatibility with standard mounting systems

Applications

• Control panels
• Industrial machinery
• Automation systems
• HVAC systems

What is the operating voltage range for the G2RV-SR700 AC110?

The coil operates at 110 VAC (50 Hz or 60 Hz).

Can it handle inductive loads?

Yes, it can handle inductive loads up to 2.5 A at 250 VAC.

Is the G2RV-SR700 AC110 suitable for use in harsh environments?

Yes, it has vibration and shock resistance, making it suitable for industrial settings.
