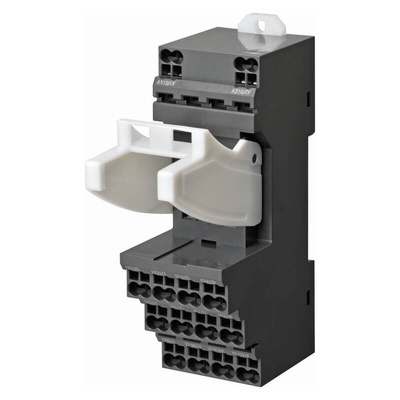

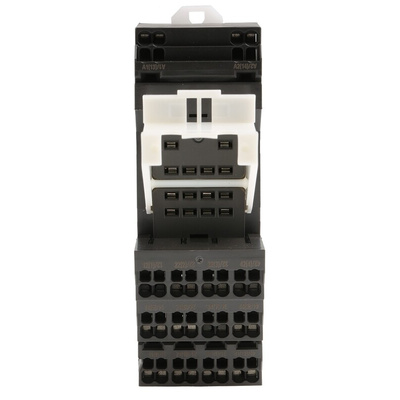

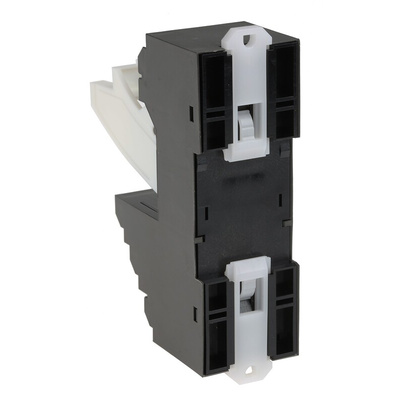

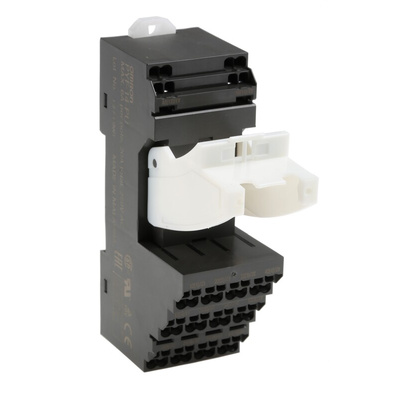

PYF-14-PU, Omron 4 Pin Relay Socket, DIN Rail for use with MY Series General Purpose Relay, Контактная колодка

Omron Relay Socket

The Omron 14-pin DIN rail mount socket has screw terminal leads. It has a contact terminal current rating of 6A and voltage rating of 250VAC. The socketed relay is retained and ejected using a simple clip. This push-in plus relay socket is suitable for use with a range of Omron relays. The push-in plus feature allows wires to be inserted without tools, which reduces the time and work involved in wiring.
This relay socket is used with MY series general purpose relays.

Features and Benefits

Hand free structure
Operating temperature ranges between -40°C and 70°C
Dielectric strength 2kVAC
Insulation resistance 1000m Ohms
Release lever
Coil terminals and contact terminals are completely separated
Front-in short bar enables easy installation
DIN terminal numbers are indicated

Applications

Wiring works
Counters

Certifications

LR certified

PYF-PU / P2RF-PU - Datasheet
