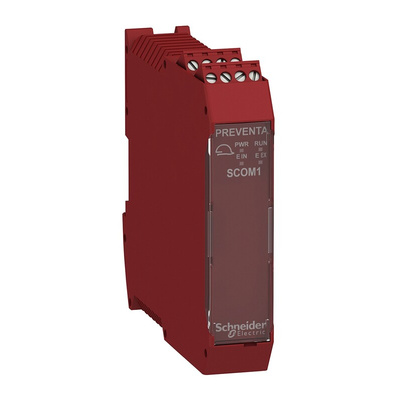

XPSMCMCO0000S1, Schneider Electric XPSMCM Series Safety Module, 24 V dc, Модуль

Preventa Safe Communication Expansion Modules, XPSMCM

The Preventa safe communication expansion modules enable the connection of the XPSMCM modular safety controller with expansion modules placed at distances of 50 m. Two modules placed at the desired distance can be linked together using RS 485 shielded cable. As a result, the expansion modules are joined to the modular safety controller. They have a compact designed, 22.5 x 99 x 114.5 mm, the same size as a typical safety relay.

Features and Benefits

Compact red housing, 22.5 x 99 x 114.5 mm
Removable screw-type terminal block for connecting the safety channels and/or power supply
Symmetrical DIN Rail locking clip
Slot for expansion bus connectors
LED status indication
Up to 6 islands can be created with a total length of 250 m and a max of 50 m between 2 safe communication modules
System response time does not change with the use of the safety communication modules
Protective cover
Green Premium Product
RoHS compliant

Stock no. 111-3507

1 channel, 1 input or 1 output
Must be connected as the first or last module

Stock no. 111-3506

2 independent connection channels, 1 input and 1 output
Connect 2 by wiring a channel of your choice

Note

The XPSMCM system is TUV SUD certified to Cat 4, PLe EN/ISO 13849-1 and SILCL 3 IEC/EN 61508 & IEC/EN 60261 standards.

Approvals

CE, cULus, TUV.
