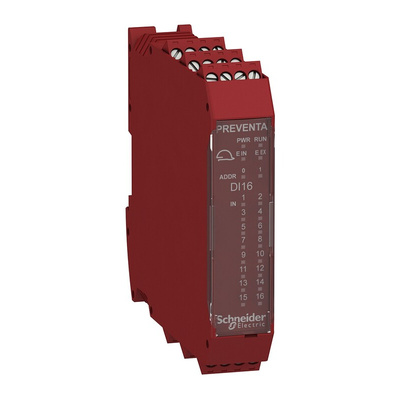

XPSMCMDI1600, Schneider Electric XPSMCM Series Input Module, 16 Inputs, 4 Outputs, 24 V dc, Модуль

Preventa Expansion Modules, XPSMCM

The Preventa XPSMCM expansion modules are designed for safety inputs or outputs and are configurable individually or in pairs. They have a compact designed, 22.5 x 99 x 114.5 mm, the same size as a typical safety relay.

Features and Benefits

Monitoring using line control monitoring via dedicated test outputs
Configurable filters and delays for each single input
Configurable output activation and de-activation delays
Independent control of pairs of outputs
Configurable diagnostic output signals
Simple diagnostics via front led signalling, configuration software, communication expansion modules
Connected to the safety controller via the expansion bus connector
Removable screw-type terminal blocks for connecting the machine bus or networks channels and/or the power supply
Symmetrical DIN Rail locking clip
Green premium product
RoHS compliant

Stock no. 111-3520

8 digital inputs
2 OSSD pairs with 400 mA output current
4 test outputs for line control monitoring of input circuits
2 configurable status outputs
2 inputs for Start/Restart interlock and external device monitoring (EDM)

Stock no. 111-3510

8 digital inputs
4 test outputs for line control monitoring of input circuits

Stock no. 111-3512

16 digital inputs
4 test outputs for line control monitoring of input circuits

Stock no. 111-3511

12 digital inputs
8 test outputs for line control monitoring: can monitor up to four 4-wire safety mats

Stock no. 111-3513

2 OSSD pairs with 400 mA output current
2 inputs for Start/Restart interlock and external device monitoring (EDM)
2 configurable status outputs

Stock no. 111-3514

4 OSSD pairs with 400 mA output current
4 inputs for Start/Restart interlock and external device monitoring (EDM)
4 configurable status outputs

Note

The XPSMCM system is TUV SUD certified to Cat 4, PLe EN/ISO 13849-1 and SILCL 3 IEC/EN 61508 & IEC/EN 60261 standards.

Approvals

CE, cULus, TUV.
