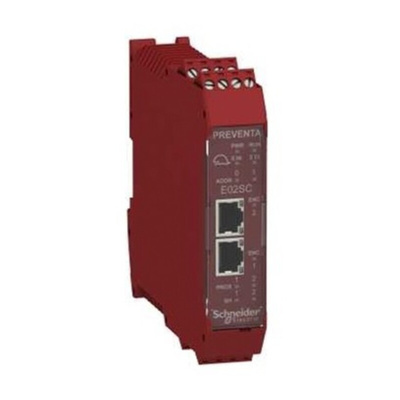

XPSMCMEN0200, Schneider Electric XPSMCM Series Input/Output Module, 24 V dc, Модуль

Preventa Safe Speed Monitoring Modules, XPSMCM

The Preventa XPSMCM safe speed monitoring modules are designed to monitor zero speed control, max speed (limited speed), speed range and direction. They have a compact designed, 22.5 x 99 x 114.5 mm, the same size as a typical safety relay.

Features and Benefits

Up to 4 logically selectable limited speed thresholds (freely configurable via SoSafe Configurable software) for each logical input (axis)
Max input frequency of 500 kHz for encoder monitoring and 5 kHz for proximity sensors
Can be configured with incremental encoders and PNP/NPN proximity switches
Removable screw-type terminal blocks for connecting the machine bus or networks channels and/or the power supply
Symmetrical DIN Rail locking clip
Green premium product
RoHS compliant

Stock no. 111-3515

1 input for Sin/Cos encoder + 1 or 2 proximity switches
1 x RJ 45 (ENC1) and terminal blocks for proximity sensor wiring
Equipped with RJ 45 connectors (1 or 2 depending on the model) for encoders and terminal blocks for proximity switches

Stock no. 111-3516

1 or 2 inputs for Sin/Cos encoders + 1 or 2 proximity switches
2 x RJ 45 (ENC1/ENC2) and terminal blocks for proximity sensor wiring
Equipped with RJ 45 connectors (1 or 2 depending on the model) for encoders and terminal blocks for proximity switches

Stock no. 111-3523

2 inputs for proximity switches
Terminal blocks for proximity sensor wiring
Equipped with RJ 45 connectors (1 or 2 depending on the model) for encoders and terminal blocks for proximity switches

Note

The XPSMCM system is TUV SUD certified to Cat 4, PLe EN/ISO 13849-1 and SILCL 3 IEC/EN 61508 & IEC/EN 60261 standards.

Approvals

CE, cULus, TUV.
