RS Pro Digital Force Gauges
RS Pro Digital Force Gauges are handheld devices that allow measurement for quality control operating force. The software and electronics of the force gauge convert the voltage of the load cell into a force value that is displayed on the instrument. A use of a test stand enables high levels of repeat applications in standard test procedures.
Features and Benefits
Tension & compression capability
RS232 interface
SD card logging capability
Auto Zero, average & peak reading
Options
Force Gauge 5000 g, RS stock no: 111-3689
Force Gauge 20 kg, RS stock no: 111-3690
Force Gauge 100 kg, RS stock no: 111-3691
Application Information
Spring testing
Wire testing
Food quality
Weld force between electrodes
Supplied with

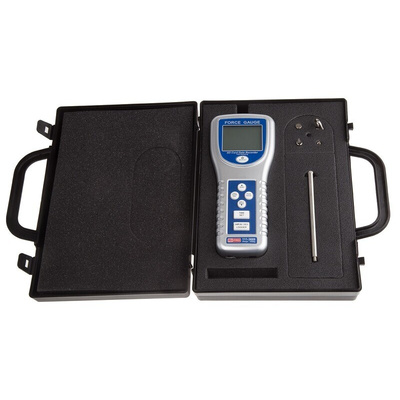

Carry case
RS PRO Force Gauge RS232, USB, Range: 49.03 N
This digital force gauge from the trusted RS PRO range converts the voltage of a load into a force value, letting you measure compression and tension on a variety of materials.
The gauge can display force in either kilograms, imperial pounds or Newtons. It has a maximum range of 49.03 N (5 kg), with an accuracy of ±0.5%. An optional test stand, sold separately, enables you to repeat the measurements at a frequency, for example in standard test procedures.
The digital force gauge works with the standard RS232 interface, meaning it's compatible with common computing software. You can download results directly into a range of applications, including Microsoft Excel. The device also takes an SD card for additional data storage or manual data transfer.
Force gauges are useful in a range of testing and measuring applications, from wire springs to electrodes.
Features and Benefits
• Force gauge
• Range of 49.03 N (5 kg)
• Dimensions of 215 mm (L) x 90 mm (W) x 45 mm (D)
• 1.5 V battery type
• Operating temperature range of 0°C to +50°C
• Digital output of RS232, USB
• Measurement units in kg, lb and N
• Best accuracy of +0.5%
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Datasheet
RS PRO User Guide
