RS PRO Force Gauge RS232, USB, Range: 196N, Датчик силы

RS Pro Digital Force Gauges

RS Pro Digital Force Gauges are handheld devices that allow measurement for quality control operating force. The software and electronics of the force gauge convert the voltage of the load cell into a force value that is displayed on the instrument. A use of a test stand enables high levels of repeat applications in standard test procedures.

Features and Benefits

Tension & compression capability
RS232 interface
SD card logging capability
Auto Zero, average & peak reading

Options

Force Gauge 5000 g, RS stock no: 111-3689
Force Gauge 20 kg, RS stock no: 111-3690
Force Gauge 100 kg, RS stock no: 111-3691

Application Information

Spring testing
Wire testing
Food quality
Weld force between electrodes

Supplied with

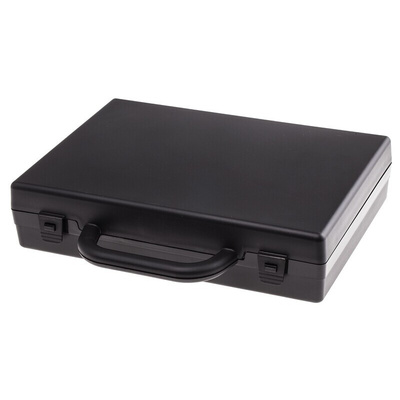

Carry case

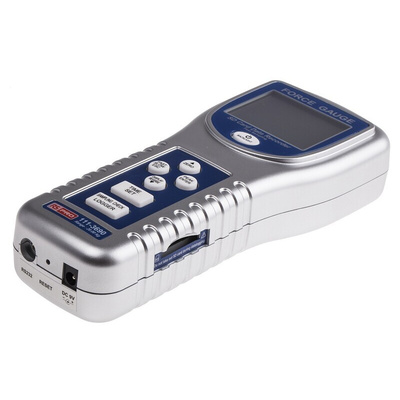

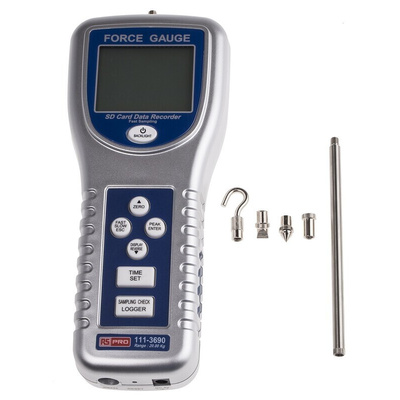

RS PRO Force Gauge RS232, USB, Range: 20 kg

RS PRO’s digital force gauges are handheld devices used to measure compression and tension on different materials during research and development work.

The device converts the voltage of a load into a force value, which is displayed on the instrument in kilos, pounds and newtons. Digital force gauges are easy to use and provide accurate results. You can use a test stand with the gauge to enable higher levels of repeat applications in standard test procedures.

These gauges have an RS232 interface and can be used with an SD card. You can directly download the recorded data from the card to Microsoft Excel. Operating safely in a temperature range from 0°C to +50°C, the gauges come complete with rigid carrying cases for their protection.

Use your force gauge across a range of applications from wire and spring testing to checking the weld force between electrodes.

Features and Benefits

• Range of 20 kg
• Dimensions of 215 mm (L) x 90 mm (W) x 45 mm (D)
• 1.5 V battery type
• Operating temperature range of 0°C to +50°C
• Digital output of RS232, USB
• Measurement units in kg, lb and n
• Best accuracy of +0.5%

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
