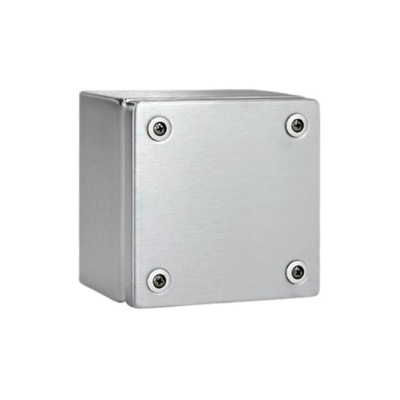

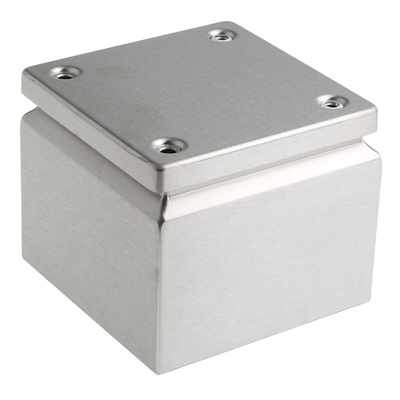

1527010, Rittal KL Series 304 Stainless Steel Terminal Box, IP66, 150 mm x 150 mm x 120mm, Настенный шкаф

Stainless Steel Terminal Boxes, KL Series

The KL Series enclosure from Rittal is folded and welded from a single piece of 1.25 mm stainless steel. The cover of the enclosure has a channel with a foamed-in PU seal providing IP66 protection. The inside of the enclosure has profiles with mounting holes for easy installation of a chassis plate or DIN rail.

Retaining cord
Profile strips on both sides of enclosure ensure maximum mounting depth is achieved
Facilities for mounting C rail and 'top hat' DIN rail
Polyurethane sealing gasket
Material 304 / 1.4301 stainless steel

Approvals

UL, CSA, TUV, VDE

Rittal Terminal Box, Stainless Steel, 150mm Height - KL Series - 1527010

This terminal box from Rittal provides a secure enclosure for your electrical components. It's made from a folded and welded piece of stainless steel that's highly resistant to impact and corrosion, making it a good choice for use in demanding industrial environments. The box also has an all-round foamed-in PU (polyurethane) seal that prevents moisture and contaminants from entering the box and damaging the items inside. This type of box is commonly used in industrial settings to protect wiring circuits, lighting switches and sockets.

Features & Benefits

• Quick-release fastener so you can take the cover on and off for ease of access
• IP66 (ingress protection) rating for protection against dust and high-pressure water jets
• Non-transparent door enhances security by hiding the contents of the box from view
• Compact dimensions of 150 (length) x 150 (length) x 120mm for use in areas where space is limited

Applications

• Factory floors
• Testing facilities
• Machine workshops
• Automobile garages
• Electrical control rooms

How do I mount this terminal box?

This terminal box has profiled mounting holes that allow for quick and simple installation on a DIN rail without the need for any specialised tools.

Datasheet

Instruction Sheet - Terminal Boxes KL Stainless Steel
