1530010, Rittal KL Series 304 Stainless Steel Terminal Box, IP66, 300 mm x 400 mm x 120mm, Настенный шкаф

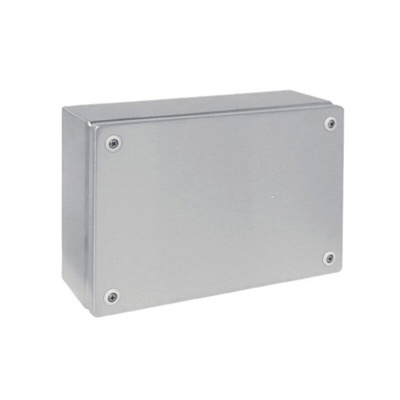

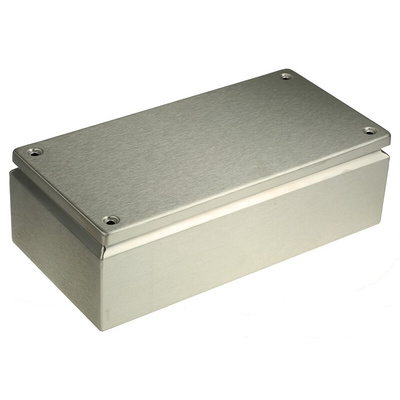

Rittal Stainless Steel Terminal Box, 300mm Height, 400mm Width - KL Series - 1530010

Safely store your sensitive electrical equipment and instruments with this terminal box from Rittal. The robust stainless steel construction makes it resistant to impact and corrosion for use in harsh conditions. Its main enclosure consists of a single 1.25mm sheet of steel that's folded and welded to prevent weak spots in the construction. A separate cover panel can be screwed in place to prevent unauthorised access. The cover has no window, preventing others from seeing its contents for added security.

Features & Benefits

• IP66 (ingress protection) rating means it's protected against dust and high-pressure water sprays
• Compact dimensions of 300 (height) x 400 (width) x 120mm (depth) means it won't take up too much space
• Polyurethane foam seal provides insulation and keeps contaminants out
• Internal mounting bosses for simple installation of a DIN rail or chassis plate

Applications

• Road maintenance workshops
• Utility rooms
• Machine automation
• Factory equipment
• Laboratory testing

How do you mount this terminal box?

This terminal box can be securely mounted on a wall or other flat surface using brackets.

Datasheet

Instruction Sheet - Terminal Boxes KL Stainless Steel
