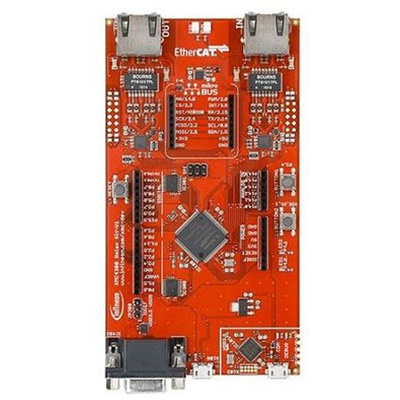

Infineon XMC4300 Relax EtherCAT® Shield KITXMC43RELAXECATV1TOBO1

Infineon EtherCAT Shield

The Infineon technologies EtherCAT Shield is an evaluation kit for the XMC4300 MCU. The XMC4300 family of microcontroller integrates the EtherCAT node on an ARMCortex-M4 based processor with on-chip flash and analogue/mixed-signal capabilities. The XMC4300 kit has Arduino compatible connections allowing you to use with either 3.3V or 5V Arduino shields. The kit is ideal for control nodes and remote monitoring applications. It is used in the internet of things (IoT) networks and applications that include factory automation areas.

Features and Benefits

Dual power supply
ARM® Cortex (M4-based)
Integrated EtherCAT slave controller
256KB flash and 128KB SRAM
EtherCAT slave components: 2 EtherCAT phys and 2 RJ45 jacks
Prepared for EtherCAT Phy-2-phy connection for backplane applications (assembly option)
mikroBUS socket for plug-and-play click boards
CAN transceiver and CAN connector (D-sub 9way)
On-board debug probe with USB interface supporting SWD + SWO
Virtual COM port via on-board debug probe
Power over USB
ESD and reverse current protection

Applications

Embedded development
Educational institutions
Robotics
Internet of things
Human machine interface
Electronics laboratories
Automation

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

XMC4300 Relax EtherCAT Kit - V1.1 for XMC4000 family
