KITXMCLINKSEGGERV1TOBO1, Infineon XMC

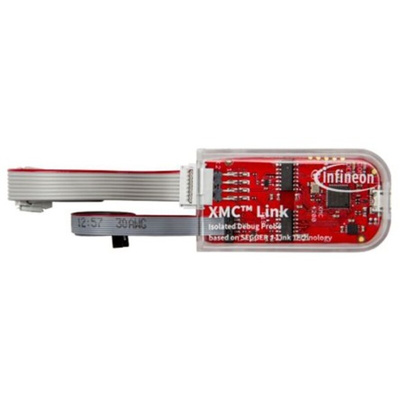

XMC Link - Isolated Debug Probe

The XMC^™ Link is an electrically-isolated programming/debug probe based upon SEGGER J-Link technology. It is designed for use with all Infineon XMC 1000/4000 family microcontrollers. The probe firmware works in conjunction with Infineon DAVE^™ software. It also works with other compilers and Integrated Development Environments (IDEs) for the ARM^® ecosystem.

Basic Features

• Supported processors: Cortex-M core XMC microcontrollers
• 1000Vdc functional isolation from Target
• 10-pin Cortex debug connector for XMC4000 devices
• 8-pin XMC MCU debug connector for XMC1000/4000 devices
• Micro-AB USB connector for host PC
• Debug and Communication status LEDs\n
• Power supply: +2.5 to +5.5Vdc (from Target) and +5Vdc (from USB connection)
• Dimensions: 62 x 33mm (exc cables)

Supported Protocols

• Serial Wire Debug (SWD)
• Serial Wire Viewer (SWV via SWO pin)
• Single Pin Debug (SPD)
• JTAG
• Virtual COM Port (UART-USB Bridge)

Supported Compiler/IDE

• Altium Limited
• Atollic
• ARM/KEIL
• IAR Systems
• Infineon
• Rowley Associates

Supplied with

Target connection cables

XMC Link Based on SEGGER J-Link Technology

XMC Link - Isolated Debug Probe
