RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, SPDT, Red LED, 250V ac, IP67, Кнопочный переключатель

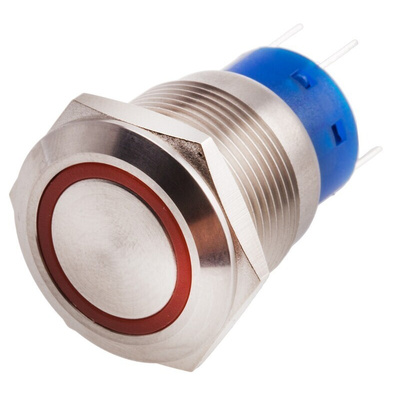

RS PRO Single Pole Double Throw (SPDT) Momentary Red LED Push Button Switch, IP67, 19.2 mm (Dia.), Panel Mounting, 250 V AC

It's easy to control an electrical circuit with this RS PRO single pole double throw (SPDT) momentary red LED push button switch. This actuator comes in a case that can be panel mounted onto any hard surface or soldered into place. It has silver-plated copper contacts for a reliable electrical connection. The LED lights up to let you know there's power running through the circuit.
Thanks to its Ingress Protection rating of IP67, you can safely use this SPDT switch in dusty environments. It also means the component can be submerged in up to one metre of water for half an hour without damage. It's used to control heavy plant equipment, production line machinery and games.

Features and Benefits

• Silver, round, flat actuator
• Natural case colour
• Contact voltage rating of 250 V AC
• Single Pole Double Throw (SPDT) contact configuration
• Contact current rating of 5 A
• Copper contact material
• Illuminated
• Illumination voltage of 24 V
• IP67 rated
• Red LED colour
• Panel mounting type
• Panel cut out size of 19.2 mm (diameter)
• Standards met include cULus, E 187490, IK10
• Momentary switch operation
• Solder pin terminal type
