RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19.2mm Cutout, SPDT, Green LED, 250V ac, IP67, Кнопочный переключатель

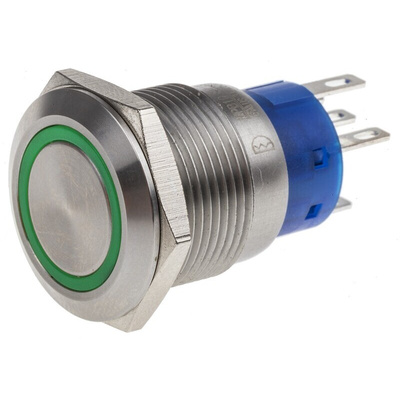

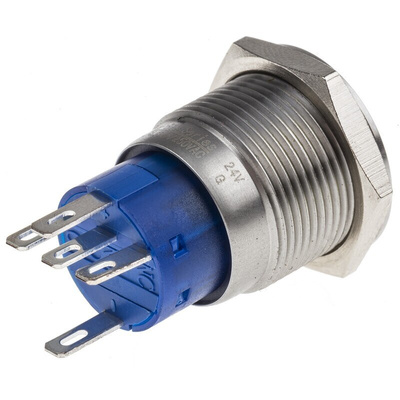

RS PRO Single Pole Double Throw (SPDT) Latching Green LED Push Button Switch, IP67, 19.2 mm (Dia.), Panel Mounting, 250 V AC

This single pole double throw (SPDT) latching green LED push button switch from RS PRO allows you to control the flow of electricity through a circuit. It's made for industrial settings from food production lines to scientific labs.
For easy installation, you can solder this product into place or panel mount it. Its compact design means it fits into smaller spaces. The contacts are made from copper to ensure good connectivity and no loss of power while you're working.
The component is IP67 rated, which means it's safe to use in dusty environments. You can also submerge it in up to one metre of water for half an hour. It's found in communications technology, machinery and medical equipment.

Features and Benefits

• Round, flat silver actuator
• Natural case colour
• Contact AC voltage rating of 250 V AC
• Single Pole Double Throw (SPDT) contact configuration
• Contact current rating of 5 A
• Copper contact material
• Illuminated
• Illumination voltage of 24 V
• IP (Ingress Protection) rating of IP67
• Green LED colour
• Panel mounting type
• Panel cut out size of 19.2 mm (diameter)
• Standards met include cULus Recognized E 187490, IK10
• Latching switch operation
• Solder pin terminal type

Datasheet
