RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19mm Cutout, SPDT, Blue LED, 250V ac, IP67, Кнопочный переключатель

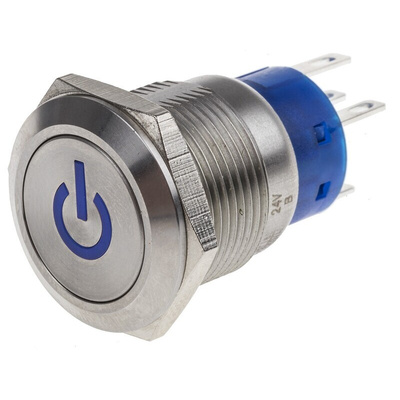

RS PRO Single Pole Double Throw (SPDT) Latching Blue LED Push Button Switch, IP67, 19 mm (Dia.), Panel Mounting, 250 V AC

This single pole double throw (SPDT) latching blue LED push button switch from RS PRO lets you control the flow of electricity through a circuit. It's designed for use in industrial settings, including scientific labs and food production lines.


You have the choice of panel mounting this part or soldering it into place for ease of installation. The copper contacts enhance the performance of your circuits, as they ensure good connectivity. It also has a power symbol on the front that makes it easy to identify.


The switch has an IP67 rating, so you can submerge it in one metre of water for up to 30 minutes. This rating also means it's protected against dust and dirt. A switch like this one is often used in medical equipment, machinery and communications technology.

Features and Benefits

• Round, flat silver actuator


• Natural case colour


• Contact AC voltage rating of 250 V AC


• Single Pole Double Throw (SPDT) contact configuration


• Contact current rating of 5 A


• Copper contact material


• Illuminated


• Illumination voltage of 24 V


• IP67 rated


• Blue LED colour


• Power symbol


• Panel mounting type


• Panel cut out size of 19 mm (diameter)


• Standards met include cULus, E 187490, IK10 and ENEC 18


• Latching switch operation


• Solder pin terminal type
