RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19mm Cutout, SPDT, Red LED, 250V ac, IP67, Кнопочный переключатель

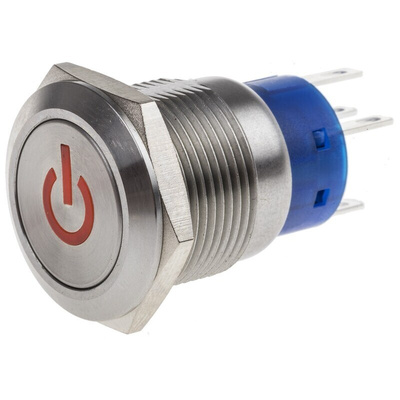

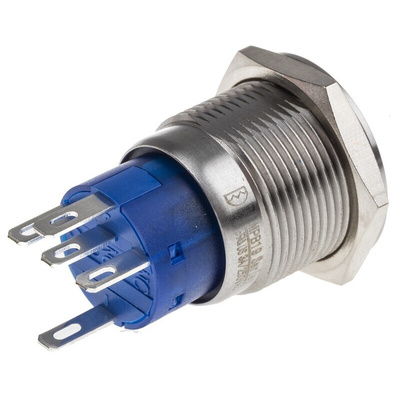

RS PRO Single Pole Double Throw (SPDT) Latching Red LED Push Button Switch, IP67, 19 mm (Dia.), Panel Mounting, 250 V AC

Looking to control the flow of electricity through your circuit? Choose this RS PRO single pole double throw (SPDT) latching red LED push button switch. It's commonly used in industrial environments such as scientific labs and food production lines.


You can solder this switch into position or panel mount it for a simple installation. Its copper contacts ensure effective connectivity without loss of power as you work. It's also marked with a power symbol, making it easy to identify.


The device has an IP67 rating, meaning it's dust-proof and resistant to submersion for half an hour in up to one metre of water. You can use this switch in medical equipment, communications technology and machinery.

Features and Benefits

• Round, flat silver actuator


• Natural case colour


• Contact AC voltage rating of 250 V AC


• Single Pole Double Throw (SPDT) contact configuration


• Contact current rating of 5 A


• Copper contact material


• Illuminated


• Illumination voltage of 24 V


• IP67 rated


• Red LED colour


• Power symbol


• Panel mounting type


• Panel cut out size of 19 mm (diameter)


• Standards met include cULus Recognized E 187490, ENEC 18, IK10


• Latching switch operation


• Solder pin terminal type
