RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19mm Cutout, SPDT, Green LED, 250V ac, IP67, Кнопочный переключатель

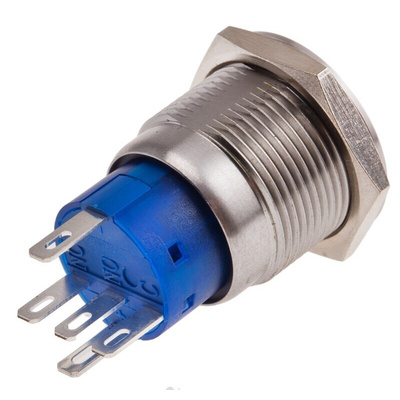

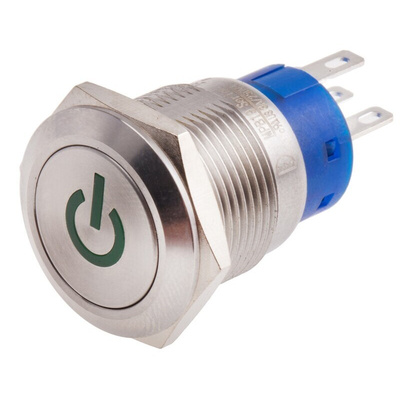

RS PRO Single Pole Double Throw (SPDT) Latching Green LED Push Button Switch, IP67, 19 mm (Dia.), Panel Mounting, 250 V AC

This RS PRO single pole double throw (SPDT) latching green LED push button switch lets you control the flow of electricity in your circuit. It's clearly marked with a power symbol, making it easy to identify. You'll commonly find it in industrial environments like scientific labs and food production lines.


The switch's IP67 rating means it's resistant to dust and submersion in up to one metre of water for 30 minutes. It has copper contacts for good connectivity, so there's no need to worry about losing power while you work.


For ease of installation, this product can be panel mounted or soldered into place. This switch is often used in machinery, medical equipment and communications technology.

Features and Benefits

• Round, flat silver actuator


• Natural case colour


• Contact AC voltage rating of 250 V AC


• Single Pole Double Throw (SPDT) contact configuration


• Contact current rating of 5 A


• Copper contact material


• Illuminated


• Illumination voltage of 24 V


• IP67 rated


• Green LED colour


• Power symbol


• Panel mounting type


• Panel cut out size of 19 mm (diameter)


• Standards met include cULus Recognized E 187490, ENEC 18, IK10


• Latching switch operation


• Solder pin terminal type
