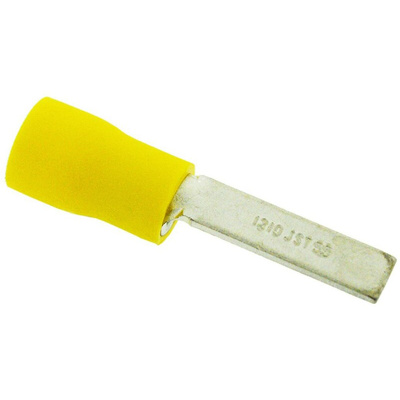

FV5.5-AFW(LF)K, JST Insulated Crimp Blade Terminal 18.6mm Blade Length, 2.6mm² to 6.6mm², 12AWG to 10AWG, Yellow

1115343
Номер производителя: FV5.5-AFW(LF)KПроизводитель: JST
Цена за шт. (норма упаковки 25 шт)
99.00 руб. (С НДС) *
Количество 25+ 250+ 500+ 1000+ 2500+
Цена 99.00 руб. 93.00 руб. 87.00 руб. 81.00 руб. 75.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

JST AF Type Insulated Crimp Blade Terminals

AF type insulated crimp blade terminals with high resistance to heat, cold, oil, fire and excellent insulating performance. The vinyl insulation offers both insulation properties and flame resistance. The flared entry design allows wire to be quickly and easily inserted into the terminal. These AF type insulated crimp blade terminals are made from oxygen free copper which has high electroconductivity. Oxygen free copper also has excellent electrical and mechanical characteristics which surpass those of other copper materials. The toughness of oxygen free copper means it can be safely brazed without hydrogen embrittlement allowing high strength brazed seams to be produced on the terminals.

Features and Benefits

Vinyl insulation with high insulation properties and flame resistance
High resistance to heat, cold and fire
Flared wire entry for quick and simple wire insertion
Oxygen free copper with high electroconductivity, electrical and mechanical characteristics
High strength brazed seams
Temperature rating of 75°

JST Insulated Crimp Terminals

Техническая спецификация
pdfVinyl insulated crimp blade terminals - Catalogue Page
Maximum Wire Size mm²:
6.6мм²
Minimum Wire Size mm²:
2.6мм²
Диаметр внутренний:
6.8мм
Длина лезвия:
18.6мм
Длина общая:
32.1мм
Защищенный/Незащищенный:
Unshrouded
Изоляционный:
Insulated
Крючковатый:
Нет
Максимальный размер провода AWG:
10AWG
Материал изоляции:
Винил
Минимальный размер провода AWG:
12AWG
Род:
Male
Толщина лезвия:
1мм
Цвет:
Желтый
Ширина лезвия:
4.5мм
