RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, SPDT, Blue LED, 250V ac, IP67, Кнопочный переключатель

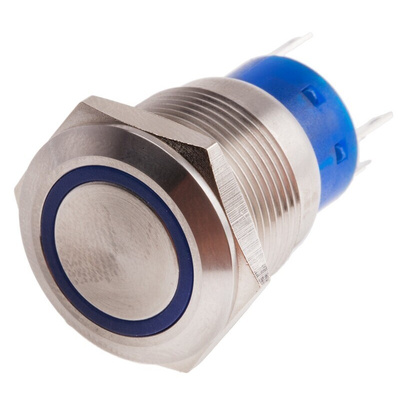

RS PRO Single Pole Double Throw (SPDT) Momentary Blue LED Push Button Switch, IP67, 19.2 mm (Dia.), Panel Mounting, 250 V AC

This RS PRO SPDT (single pole double throw) momentary blue LED push button switch makes it simple to control an electrical circuit. The LED lights up to let you know at a glance that there's power running through the circuit. For ease of installation, the actuator has a case that can be soldered into place or panel mounted onto any hard surface.


The unit's IP67 rating means you can safely use this SPDT switch in dusty settings. It also means the component is protected against submersion in up to one metre of water for up to half an hour, making it a good choice for damp environments.


Its silver-plated copper contacts ensure a dependable electrical connection. The switch is commonly used to control games, heavy plant equipment and production line machinery.

Features and Benefits

• Silver, round, flat actuator


• Natural case colour


• Contact voltage rating of 250 V AC


• Single Pole Double Throw (SPDT) contact configuration


• Contact current rating of 5 A


• Copper contact material


• Illuminated


• Illumination voltage of 12 V


• IP67 rated


• Blue LED colour


• Panel mounting type


• Panel cut out size of 19.2 mm (diameter)


• Standards met include cULus, E 187490, IK10


• Momentary switch operation


• Solder pin terminal type

Datasheet
