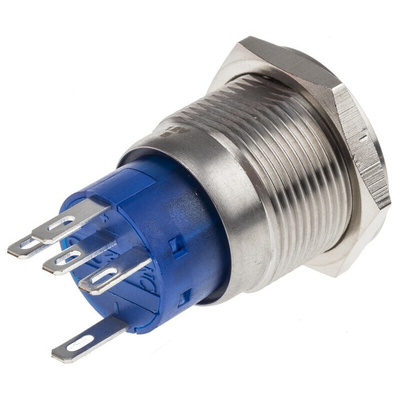

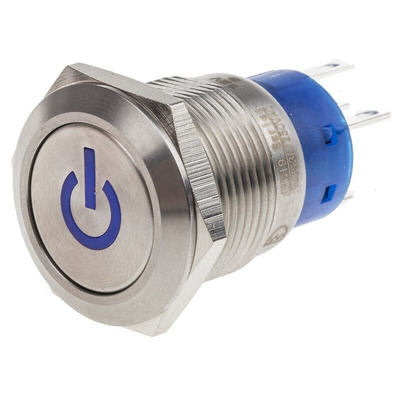

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19mm Cutout, SPDT, Blue LED, 250V ac, IP67, Кнопочный переключатель

RS PRO Single Pole Double Throw (SPDT) Latching Blue LED Push Button Switch, IP67, 19 mm, Panel Mounting, 250 V AC, Power

With this single pole double throw (SPDT) latching blue LED push button switch from RS PRO, you can control the flow of electricity through a circuit. It's designed for use in a range of industrial settings, including food production lines and research labs.


This device is easy to install as it can be soldered or panel mounted. Its small size allows it to fit into more confined spaces. Copper contacts provide reliable connectivity and minimise the risk of power loss while you work. It also has a power symbol for ease of identification.


The component has an IP67 rating, so it's suitable for use in dusty conditions. It can also be submerged for half an hour in up to one metre of water. You'll find this switch used in telecommunications, manufacturing and medical equipment.

Features and Benefits

• Round, flat silver actuator


• Natural case colour


• Contact AC voltage rating of 250 V AC


• Single Pole Double Throw (SPDT) contact configuration


• Contact current rating of 5 A


• Copper contact material


• Illuminated


• Illumination voltage of 24 V


• IP67 rated


• Blue LED colour


• Power symbol


• Panel mounting type


• Panel cut out size of 19.2 mm (diameter)


• Standards met include cULus Recognized E 187490, IK10


• Latching switch operation


• Solder pin terminal type
