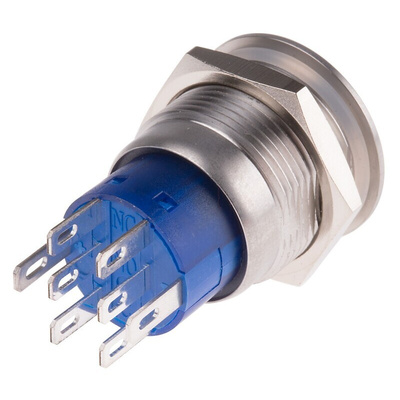

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19mm Cutout, DPDT, Blue LED, 250V ac, IP67, Кнопочный переключатель

RS PRO Double Pole Double Throw (DPDT) Latching Blue LED Push Button Switch, IP67, 19 mm, Panel Mounting, 250 V AC, Power

This DPDT (Double Pole Double Throw) RS PRO push button switch can handle four independent output terminals while managing two different circuits at the same time. The latching push button holds the switch in the desired state until the button is pressed again, making the switch simple to use.


The blue LED ring makes it simple to tell if the switch is on or off at a glance. There's also a clearly marked power symbol for ease of identification. Thanks to its small size and panel-mounting design, it's a good choice for use in areas where traditional switches would be inconvenient.


For a secure connection, the switch includes silver-plated copper contacts. It's frequently found in medical and communications equipment, as well as industrial control systems.

Features and Benefits

• Silver actuator colour


• Round actuator shape


• Flat actuator type


• Natural case colour


• Contact AC voltage rating of 250 V


• Double Pole Double Throw (DPDT) contact configuration


• Contact current rating of 5 A


• Copper contact material


• Illuminated


• Illumination voltage of 12 V


• IP67 rated


• Blue led colour


• Power symbol


• Panel mounting type


• Panel cut out diameter of 19.2 mm


• Standards met include cULus, E 187490, ENEC 18, IK10


• Latching switch operation


• Solder pin terminal type


• Voltage rating of 250 V AC
