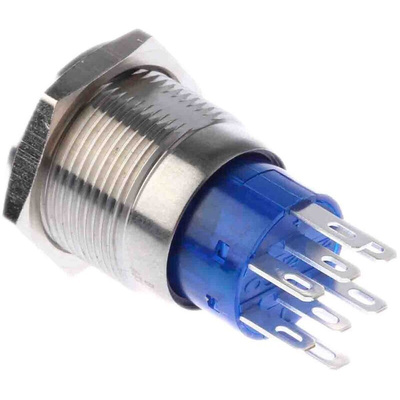

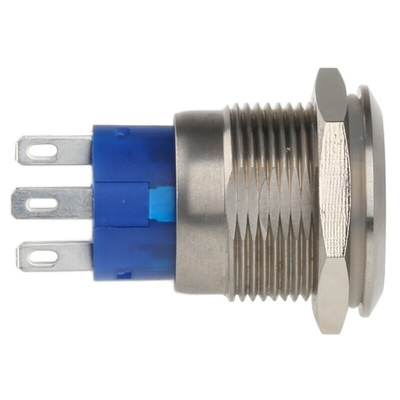

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19mm Cutout, DPDT, Green LED, 250V ac, IP67, Кнопочный переключатель

RS PRO Double Pole Double Throw (DPDT) Latching Green LED Push Button Switch, IP67, 19 mm (Dia.), Panel Mount, Power

Switch your circuit on and off with the RS PRO double pole double throw (DPDT) latching green LED push button switch. Generally found in industrial environments, this component is used in communications equipment, industrial control gear and medical devices. It's also suitable for use by home hobbyists.

For easy installation, it comes fitted with a panel mount so you can fix it quickly to an equipment panel, external case or enclosure. The switch has a short design, so you can install it in areas where space is at a premium. The contacts are made from silver-plated copper to create a firm connection.

This component is IP67 rated, which means it's protected from solid objects like dust and sand – it also works for at least 30 minutes in up to one metre of water. The latching button is made from stainless steel for a corrosion-resistant finish.

Features and Benefits

• Latching push-button switch
• Panel mounting
• Illuminated
• Double pole double throw (DPDT) contact configuration
• Panel cut out diameter of 19 mm
• Green LED
• IP67 rated for water and dust protection
• Silver actuator
• Copper contacts
• Voltage rating of 250 V ac
• Contact current rating of 5 A
• Round actuator
• Solder pin terminal
• Natural colour case
• Flat contact actuator
• AC voltage rating of 250 V

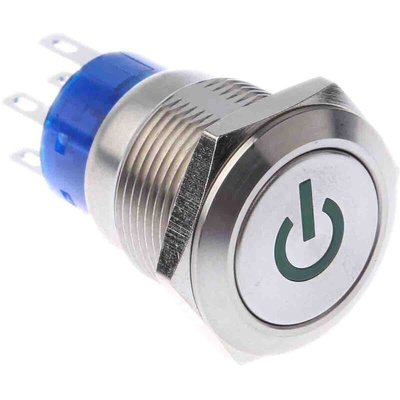

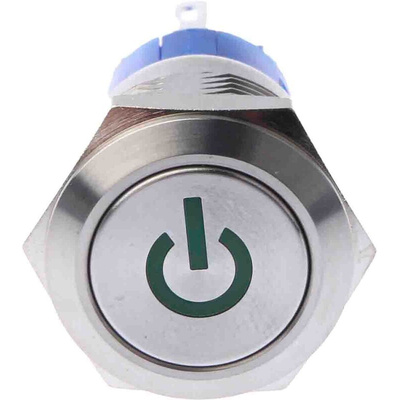

• Power symbol legend
• cULus recognised E 187490, ENEC 18, IK1 compliant for safety and quality

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
