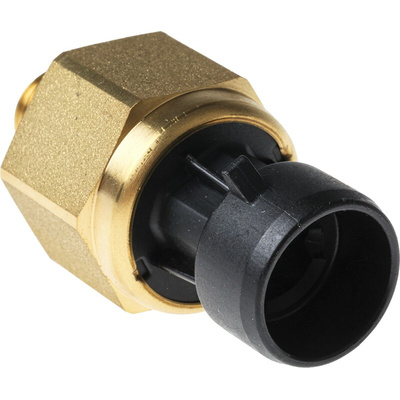

PX3AN2BS100PAAAX, Honeywell PX3 Series Pressure Sensor, 0psi Min, 100psi Max, Analogue Output, Absolute Reading, Датчик давления

1115920
Номер производителя: PX3AN2BS100PAAAXПроизводитель: Honeywell
Цена за шт.
30131.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Honeywell PX3 Series Pressure Transducer

Honeywell PX3 Series heavy duty pressure transducer is a range of highly configurable pressure sensors that use piezoresistive sensing technology with ASIC (Application Specific Integrated Circuit) signal conditioning in a brass housing. The PX3 Series is fully calibrated and compensated for offset, sensitivity, temperature effects and non-linearity using the on-board ASIC.

Pressure range: 1 bar to 46 bar (absolute and sealed gage)
Fully calibrated and temperature compensated
Total Error Band: ±1.0 %FSS from -20 °C to 85 °C [-4 °F to 185 °F]
Insulation resistance: >100 MOhm, 1500 V dc
Dielectric strength: AC1500V, 1 min. or AC1800, 1 s
Current consumption: 3.5 mA max.
Ingress protection up to IP67
Response time: <2 ms
RoHS, REACH, and CE compliant

Honeywell Heavy-Duty Analogue Pressure Sensor, 100psi Maximum Reading, 0.5 to 4.5V Output - PX3 Series - PX3AN2BS100PAAAX

Use this heavy-duty pressure sensor from Honeywell when you need accurate readings and a swift response. It uses piezo-resistive sensing technology to cope with fast-changing pressures and has a quick reaction time that's under 2ms (milliseconds). This sensor is precise, with a total error band of ±1% when operating between the temperatures of -20°C and +85°C. As it's frost resistant, the unit is safe to use with HFC (hydrofluorocarbon) refrigerants and works at low temperatures down to -40°C. This means the transducer is ideal for HVAC (heating, ventilation and air conditioning) systems.

Features & Benefits

• IP67 ingress protection rating means it's dust-tight and water-resistant for use in demanding industries
• Comes fully calibrated and temperature-compensated to speed up installation
• Works with supply voltages between 4.75 and 5.25V DC, so it's useful in a variety of electrical circuits
• Corrosion-resistant brass housing makes it durable and long-lasting

Applications

• Aerospace and transport
• Food and agriculture industries
• Pharmaceutical and medical applications

What fluids can this sensor measure?

This sensor is designed to measure a range of liquids, including brake oil and hydraulic fluids. It can also measure refrigerants and air.

Техническая спецификация
pdfHeavy Duty Pressure Sensors Line Guide
pdfPX3 Quick Start
pdfPX3 Selection Guide
pdfDatasheet
pdfPX3 Installation Instructions
pdfDatasheet
pdfRange Guide - Airflow, Force & Pressure Sensors
pdfApplication Note - PX3AN2BS100PAAAX
pdfProduct / Process Change Notification
Аналоговый выход:
0.5 → 4.5 В
Время отклика:
<2 мс
Измерение информации:
Air, Brake Fluid, Hydraulic Fluid, Oil, Refrigeration Fluid
Максимальное воздействие считывания:
100psi
Максимальный ток:
3 мА
Материал корпуса:
Латунь
Минимальное воздействие считывания:
0psi
Напряжение питания:
4.75 → 5.25 В пост. тока
Рабочая температура - максимальная:
+125°C
Рабочая температура - минимальная:
-40°C
Серия:
PX3
Соединение с процессом:
NPT 1/8
Степень защиты IP:
IP67
Тип воздействия считывания:
Абсолютный
Тип выхода:
Аналоговый
Тип монтажа:
Резьбовое
Точность:
±0.25 %
Электрическое соединение:
Metri-Pack 150
