92-851.342, EAO Contact Block for Use with 92 Series Push Button Switches, 42V ac/dc, 1NO, Контактный блок

EAO 92 Halo Series PCB Contact

Features and Benefits

The new EAO series 84 Halo range of multi function illumination switches provide a robust & attractive switching solution. The series offers the facility to display the most common status indication features within a single unit.

Providing up to 8 indications within a single switch, meaning application space can be saved. Illumination is provided in two forms, a "halo" ring around the actuator and an optional led can illuminate the centre of the lens.

The Halo range can be used within lighting applications, offering up to 8 pre-configured lighting sequences along with indication of status. This is an ideal solution to space-critical applications as multiple processes can be managed within a single switch.

•Offers multiple process management, with indications.
•Integrated electronic switch for maintained action.
•Premium Bi-Colour LEDs used within construction, providing longevity & crisp illumination.
•Modular nature of the Halo series means true application freedom.
•Can be used within both panel & PCB mounting applications.
•Silver alloy gold-plated contacts for a firm, strong connection.
•Frontal IP67 protection.

Typical Applications

•Control panels
•Vehicle operator controls
•A/V instrumentation
•Call box access
•Vending machine & kiosks

Note

The EAO Series 84 Halo range is a modular switch range. To have a complete switch, you would require to select a lens (RS Stock number 111-5930 Typical), actuator (RS Stock number 903-9300) & switching element (RS Stock number 903-9290 typical).

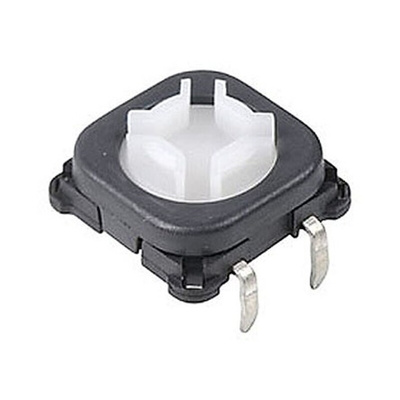

EAO Contact Unit, Illuminated, 100mA Switching Current - 92 Series - 92-851.342

Power through your switching applications with this contact unit from EAO. When you partner it with a push button, this component will make or break its internal contacts, causing the connected device to turn on or off. You can be sure of reliable connectivity as the contacts are made from highly conductive gold that offers a glittering defence against corrosion. The unit's built-in LED will throw some light on your switch so you can easily tell when it's on. For a solid start, use it with push buttons from the 92 series.

• Low switching current of 100mA for minimal power consumption
• Integrated PC pins for a secure solder connection to your PCB

Applications

• Agricultural equipment
• Mining and quarrying industries
• Vending machines
• Medical technology

What's meant by momentary switching action?

The momentary switching action of this unit means that the contacts will remain in their changed state for as long as you keep pressing the button. Once you remove the pressure, the contacts will automatically go back to their original position. It's an ideal choice for safety-related devices where you need short-term activation.

EAO84/92 Halo Series Modular Switches

EAO 92 Halo Series Illuminated Switching Element Datasheet
