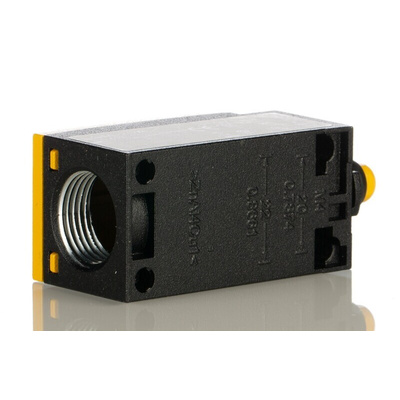

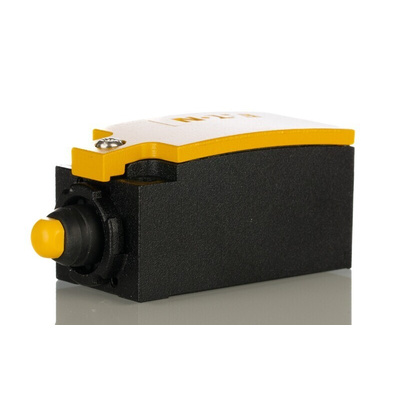

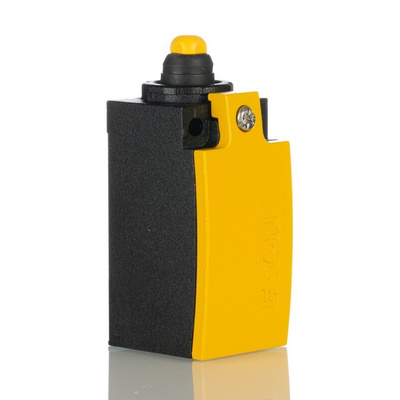

100051 LSM-20A, Eaton Series Plunger Limit Switch, 2NO, IP66, IP67, DPST, Metal Housing, 400/415V ac Max, 6A Max

Eaton Limit Switch, Plunger Actuator Type, Front Mounting - LS-Titan Series - 100051 LSM-20A

Use this limit switch from Eaton to automatically control the operation of your machines. As it's a plunger actuator, it uses less space than lever alternatives, so is useful for machinery where movements are small or space is at a premium. Durable metal housing makes this a good choice for tough conditions. This device has a cage clamp connection for securely holding your cables, so it's suitable for use with vibrating equipment. Thanks to a wide operating temperature range of -25°C to +70°C, you can rely on this switch in harsh working environments.

Features & Benefits

• IP67 ingress protection rating means it's waterproof and has total protection against dust
• 2NO electrical contacts to reduce energy consumption and support applications with a default off state
• Maximum 415V AC rating for use with medium-duty and heavy-duty applications
• Round plunger control element makes it suitable for use where accurate timing is important

How is this switch activated?

This limit switch is 'normally open' and is activated when an object presses down on the round plunger.

Will this plunger-actuated limit switch have a long working life?

With a mechanical life of 8 million operations, this device is a reliable option for long-term use.

Note

Eaton formerly known as Moeller

Datasheet

Instruction Sheet - 100051 LSM-20A
