1652651, Phoenix Contact D Sub Adapter Male 9 Way D-Sub to Male 9 Way D-Sub

Phoenix Contact D-Sub Gender Changers

From Phoenix Contact, a range of D-Sub gender changers. The D-sub adapters in this series have yellow chromate steel housings and copper alloy contacts. The gender changers are straight in orientation and are available in 9, 15, and 25 way male and female options. All connectors in this range have 4-40 UNC threads.

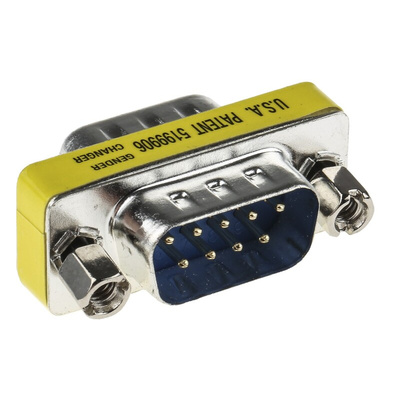

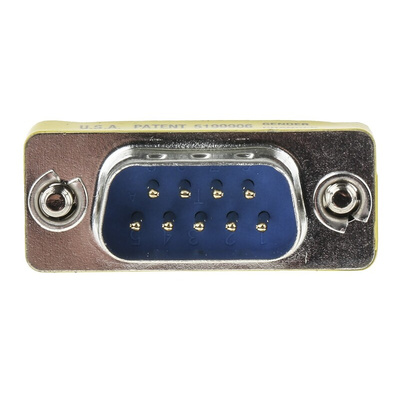

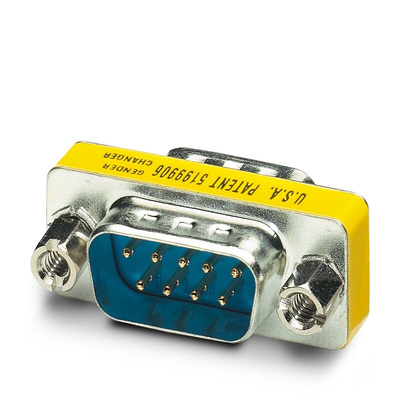

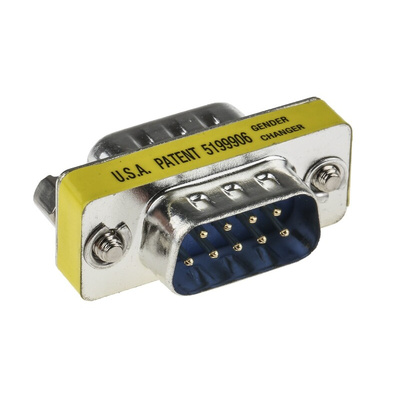

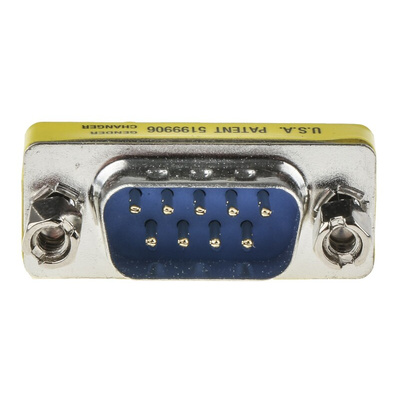

Phoenix Contact Male 9-Way D-Sub to Male 9-Way D-Sub Adaptor, 5A - VS-09-GC-ST/ST - 1652651

Use this D-subminiature adaptor from Phoenix Contact to make reliable serial connections in commercial and industrial equipment. It lets you mate mismatched connectors or provide a channel for passing cables through a bulkhead, making it a versatile choice. The copper alloy contacts are highly conductive, giving you a steady and reliable connection. For electrical safety, the polyester contact carrier material has excellent insulation properties.
This connector has two steel screws on its sides that you can use to lock it onto the port you're linking it to. This prevents it from accidentally coming loose, even in applications where heavy vibrations are common. Thanks to its current rating of 5A and voltage rating of 125V, this adapter is suitable for light-duty to medium-duty applications. You'll find it used in manufacturing environments to connect devices such as variable frequency drives and programmable logic controllers (PLCs).

• Broad operating temperature range of -55°C to +125°C for use in demanding conditions
• Chromated steel housing for durability and corrosion resistance
• Light weight of 9g puts minimal strain on your equipment

Datasheet 1652651

Line Drawing - 1652651
