RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 12mm Cutout, SPST, Blue LED, 12V ac/dc, IP40, Кнопочный переключатель

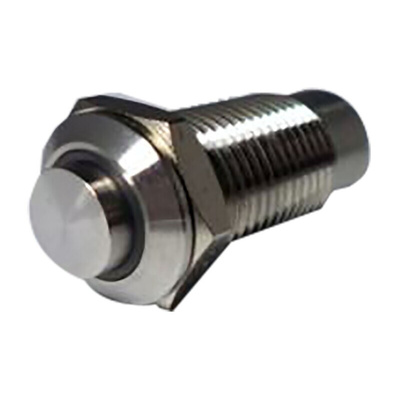

RS PRO Single Pole Single Throw (SPST) Latching Blue LED Push Button Switch, IP40, 12 mm (Dia.), Panel Mounting, 12 V AC/DC

Keep your public machines and panels functioning in harsh conditions with this RS PRO switch. It can be used both inside and outside. Its high impact-resistance rating of IK08 makes it vandal-proof and suitable for use in busy public spaces.
This durable switch is made from strong stainless steel with silver alloy contacts for maximum conductivity. It comes with a blue LED ring, so you can easily see when it's running.
This type of switch is useful on a wide range of devices such as ticket machines, security keypads and signal-controlled pedestrian crossings. Transport companies, local council maintenance departments and vending machine manufacturers use them.

Features and Benefits

• Silver actuator colour
• Round actuator shape
• Raised actuator type
• Single pole single throw (SPST) contact configuration
• Contact current rating of 15 mA
• Contact voltage rating of 36 V DC
• Silver alloy contact material
• Illuminated
• IP40 Ingress Protection (IP) rating
• Blue LED colour
• Panel mounting type
• Panel cut-out size of 12 mm (diameter)
• Latching switch operation
• Quick connect terminal type
• Voltage rating of 12 V AC/DC
