RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 12mm Cutout, SPST, Green LED, 12V ac/dc, IP40, Кнопочный переключатель

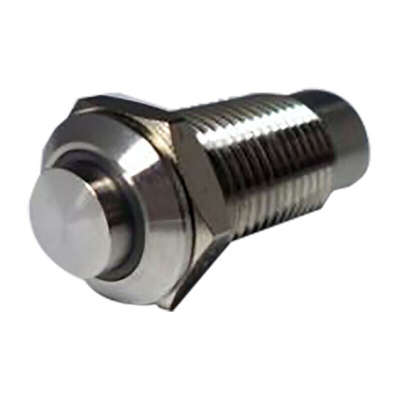

RS PRO Single Pole Single Throw (SPST) Latching Green LED Push Button Switch, IP65, IP67, 12 mm (Dia.), Panel Mounting, 12 V AC/DC

Use this switch from RS PRO to keep your panels and machines functioning, even in harsh indoor and outdoor environments. It has an impact resistance rating of IK08, which means it's vandal-proof. This makes it well-suited for installation in busy public areas.


Thanks to its stainless steel construction, the switch is highly durable. For maximum conductivity, it also has silver alloy contacts. The green LED ring makes it easy to see when it's running.


This type of switch is useful on a wide range of devices, including security keypads, ticket machines and signal-controlled pedestrian crossings. It's commonly used by vending machine manufacturers, local government maintenance departments and transport companies.

Features and Benefits

• Silver actuator colour


• Round actuator shape


• Raised actuator type


• Single pole single throw (SPST) contact configuration


• Contact current rating of 15 mA


• Contact voltage rating of 36 V DC


• Silver alloy contact material


• Illuminated


• Ingress Protection (IP) rating of IP65 and IP67


• Green LED colour


• Panel mounting type


• Panel cut-out size of 12 mm (diameter)


• Latching switch operation


• Quick-connect terminal type


• Voltage rating of 12 V AC/DC

RS PRO Datasheet
