RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 12mm Cutout, SPST, Green LED, 24V ac/dc, IP40, Кнопочный переключатель

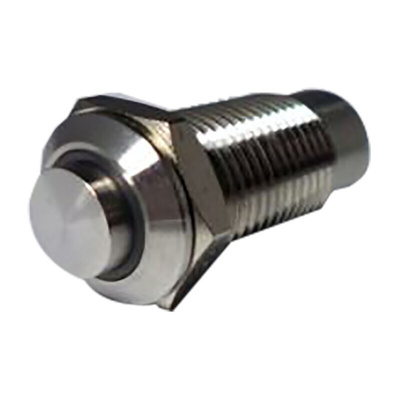

RS PRO Single Pole Single Throw (SPST) Latching Green LED Push Button Switch, IP65, IP67, 12 mm (Dia.), Panel Mounting, 24 V AC/DC

If you need a switch that's suitable for both indoor and outdoor installations, choose this one from RS PRO. It has IP65 and IP67 ratings, which means it's completely weatherproof.


The switch is suitable for use in busy public areas thanks to its impact resistance rating of IK08, which means it's vandal-proof. It's also made of a durable stainless steel material with silver alloy contacts for maximum conductivity. It has an easy-to-see green LED ring, so you can tell when it's running at a glance.


This type of switch is commonly used on a wide range of devices, including security keypads, signal-controlled pedestrian crossings and ticket machines. It's often used by vending machine manufacturers, transport companies and local council maintenance departments.

Features and Benefits

• Silver actuator colour


• Round actuator shape


• Raised actuator type


• Single pole single throw (SPST) contact configuration


• Contact current rating of 15 mA


• Contact voltage rating of 36 V DC


• Silver alloy contact material


• Illuminated


• Ingress Protection (IP) rating of IP65 and IP67


• Green LED colour


• Panel mounting type


• Panel cut-out size of 12 mm (diameter)


• Latching switch operation


• Quick-connect terminal type


• Voltage rating of 24 V AC/DC
