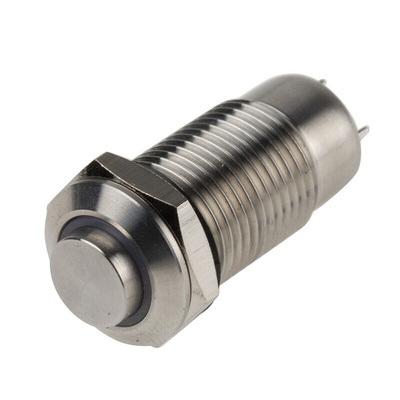

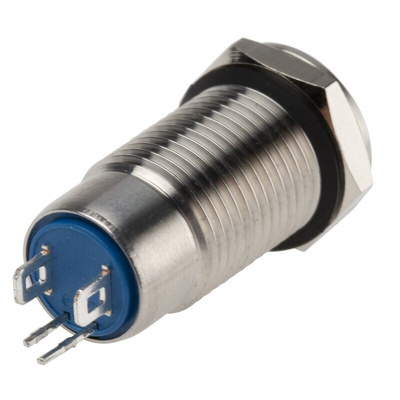

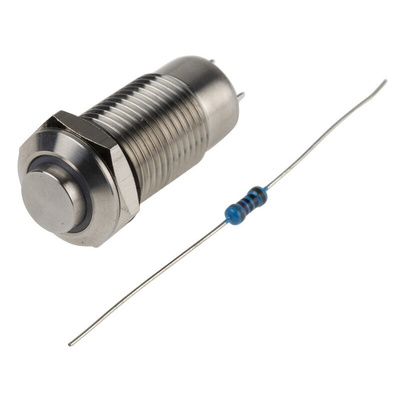

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 12mm Cutout, SPST, Red LED, 12V ac/dc, IP40, Кнопочный переключатель

RS PRO Single Pole Single Throw (SPST) Latching Red LED Push Button Switch, IP65, IP67, 12 mm (Dia.), Panel Mounting, 12 V AC/DC

Looking for a switch that you can depend on? Try this one from RS PRO. It's vandal-proof thanks to its high impact resistance rating of IK08. This means you can safely install it in busy indoor and outdoor public spaces.


This durable switch is made of strong stainless steel with silver alloy contacts for maximum conductivity. Its red LED ring makes it easy to see when it's running.


A switch like this one is often used by vending machine manufacturers, maintenance departments in local councils and transport companies. You'll find it on a wide range of devices, from signal-controlled pedestrian crossings to ticket machines and security keypads.

Features and Benefits

• Silver actuator colour


• Round actuator shape


• Raised actuator type


• Single pole single throw (SPST) contact configuration


• Contact current rating of 15 mA


• Contact voltage rating of 36 V DC


• Silver alloy contact material


• Illuminated


• Ingress Protection (IP) rating of IP65 and IP67


• Red LED colour


• Panel mounting type


• Panel cut-out size of 12 mm (diameter)


• Latching switch operation


• Quick-connect terminal type


• Voltage rating of 12 V AC/DC

RS PRO Datasheet
