RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, Blue LED, 12V ac/dc, IP65, IP67, Кнопочный переключатель

RS PRO Single Pole Single Throw (SPST) Momentary Blue LED Push Button Switch, IP65, IP67, 12 (Dia.) mm, Panel Mount, 12 V

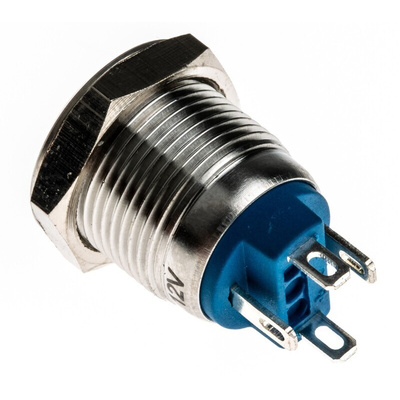

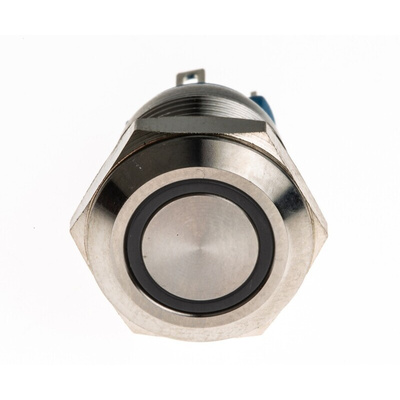

The RS PRO stainless-steel push-button switch with flush actuators is a durable anti-vandal component often used in security keypads. It has a flat actuator that's illuminated with a blue LED light.

This SPST (single-pole single throw) panel-mount switch features silver alloy contacts that offer excellent conductivity. It's IP65 and IP67 rated, meaning it's completely dust-tight and protected from water. What's more, you'll find it's vandal resistant and designed to withstand above average wear and tear. The panel-mount switch has a cut out diameter of 12 mm and a voltage rating of 12 V.

You'll find RS PRO’s momentary push-button switches are available with a choice of coloured LED rings, making status identification easy. They require the button to remain pressed for an action to take place and are frequently used for public ticket dispensers.

Features and Benefits

• Momentary, stainless-steel push-button switch
• Panel cut out size of 12 mm (diameter)
• Contact configuration of single pole single throw (SPST)
• Flat, round actuator that is silver in colour
• LED colour of blue
• Panel cut out diameter of 12 mm
• Contact current rating of 15 mA
• Panel mount
• Contact DC voltage rating of 36 V
• Illuminated switch
• Quick connect terminal type
• Silver alloy contact material
• IP rating of IP65 and IP67
• Silver alloy contacts
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet

Datasheet

RS PRO Datasheet
