RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, Blue LED, 24V ac/dc, IP65, IP67, Кнопочный переключатель

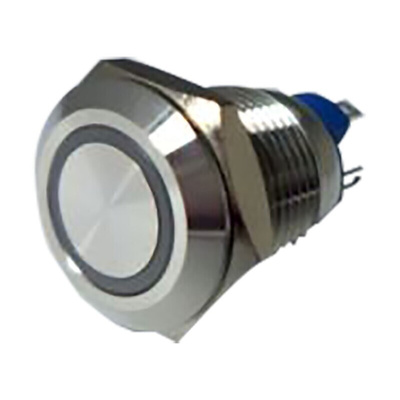

RS PRO Single Pole Single Throw (SPST) Momentary Blue LED Push Button Switch, IP65, IP67, 12 mm (Dia.), Panel Mounting, 24 V

Need a durable switch for use on a control panel? This RS PRO push button is made from corrosion-resistant stainless steel with a polyoxymethylene (POM) plunger for added strength. It has an expected electrical and mechanical lifespan of 50,000 cycles, so it's long-lasting.
You can install this button in outdoor settings and busy public spaces. This switch has a blue LED light when pressed, so you can easily see when it's functioning. The front panel has an Ingress Protection (IP) rating of IP67 and IP65, so it's dust-tight and resistant to water spray and short periods of immersion. Its IK08 rating means it's also impact resistant up to 5 joules, helping to protect it from vandalism.
This product is a momentary switch, so it's suitable for use on lift and security controls panels, automatic doors and vending machines. You'll find them in places such as museums and gyms and on trains and trams.

Features and Benefits

• Silver actuator colour
• Round actuator shape
• Flat actuator type
• Single pole single throw (SPST) contact configuration
• Contact current rating of 15 mA
• Contact voltage rating of 36 V DC
• Silver alloy contact material
• Illuminated
• IP65, IP67 rated
• Blue LED colour
• Panel mounting type
• Panel cut-out size of 12 mm (diameter)
• Momentary switch operation
• Quick connect terminal type
• Voltage rating of 24 V AC/DC

Datasheet
