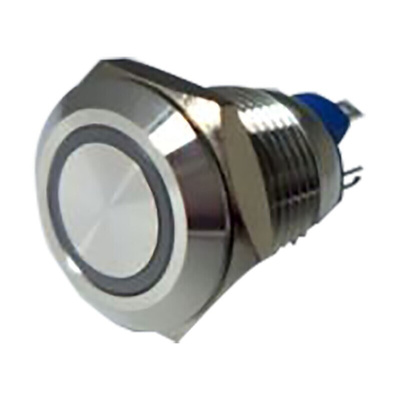

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, Green LED, 12V ac/dc, IP65, IP67, Кнопочный переключатель

RS PRO Single Pole Single Throw (SPST) Momentary Green LED Push Button Switch, IP65, IP67, 12 mm (Dia.), Panel Mounting, 12 V AC/DC

Want a switch you can use outdoors and indoors? Turn to this one from RS PRO. It has an Ingress Protection (IP) rating of IP65 and IP67, which means it's dust-tight and resistant to water spray and short-term immersion in water. It's suitable for use in public spaces as its IK08 impact resistance rating means it's vandal-proof.


This long-lasting switch is made of stainless steel for increased durability. The silver alloy contacts provide excellent conductivity for reliable performance. The green LED illuminates when pressed for an easy way to see when the switch is working.


As this product is a momentary switch type, it's a good choice for use on automatic doors, vending machines and lift and security control panels. It's commonly found in settings such as gyms, museums and trains or trams.

Features and Benefits

• Silver actuator colour


• Round actuator shape


• Flat actuator type


• Single pole single throw (SPST) contact configuration


• Contact current rating of 15 mA


• Contact voltage rating of 36 V DC


• Silver alloy contact material


• Illuminated


• Ingress Protection (IP) rating of IP65 and IP67


• Green LED colour


• Panel mounting type


• Panel cut-out size of 12 mm (diameter)


• Momentary switch operation


• Quick-connect terminal type


• Voltage rating of 12 V AC/DC

Datasheet
