RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, Green LED, 24V ac/dc, IP65, IP67, Кнопочный переключатель

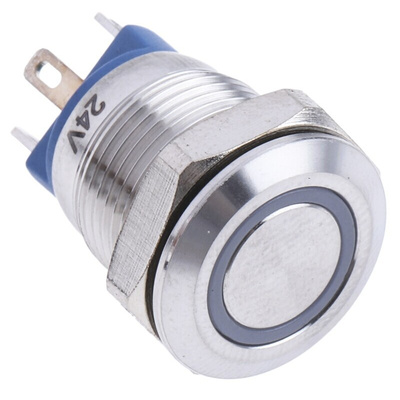

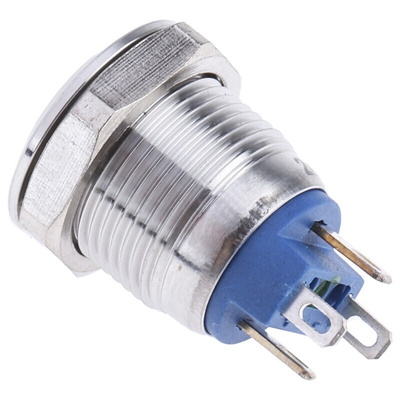

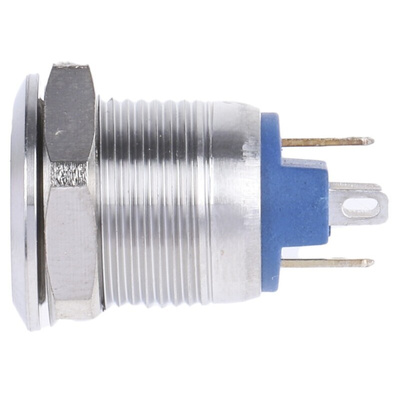

RS PRO Single Pole Single Throw (SPST) Momentary Green LED Push Button Switch, IP65, IP67, 12 (Dia.) mm, Panel Mount

This vandal-resistant RS PRO stainless-steel push-button switch is rugged enough to withstand substantial wear and tear. This type of switch is often found in security keypads and the button needs to remain pressed for an action to take place.

This unit has a flat actuator that sits flush with its surrounds and it's illuminated with a green LED light. Note that our RS PRO momentary switches feature different coloured rings so you can identify them easily.

The SPST (single-pole single-throw) panel-mount switch has silver alloy contacts that offer excellent conductivity. When you install it, you'll need a cutout diameter of 12 mm for this panel-mount unit. It has a contact DC rating of 36 V.

It's IP65 and IP67 rated so the model dust-tight and water-resistant. These types of switches are often used for public ticket dispensers.

Features and Benefits

• Momentary, stainless-steel push-button switch
• Panel cut out size of 12 mm (diameter)
• Contact configuration of single pole single throw (SPST)
• Flat, round actuator that is silver in colour
• LED colour of green
• Panel cut out diameter of 12 mm
• Contact current rating of 15 mA
• Panel mount
• Contact DC voltage rating of 36 V
• Illuminated switch
• Quick connect terminal type
• Silver alloy contact material
• IP rating of IP65 and IP67
• Silver alloy contacts
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
