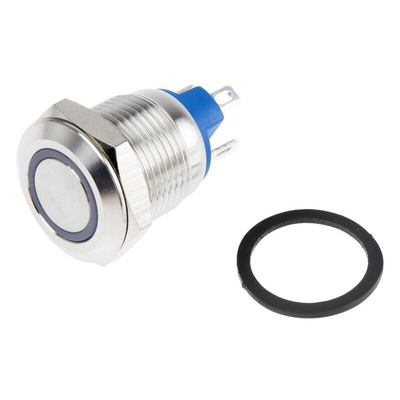

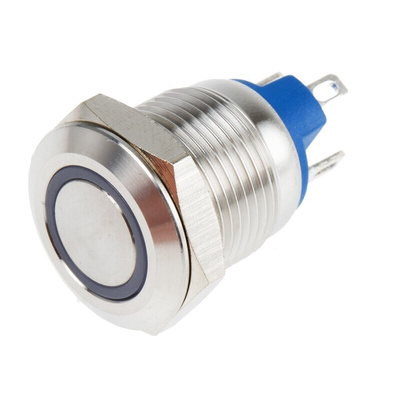

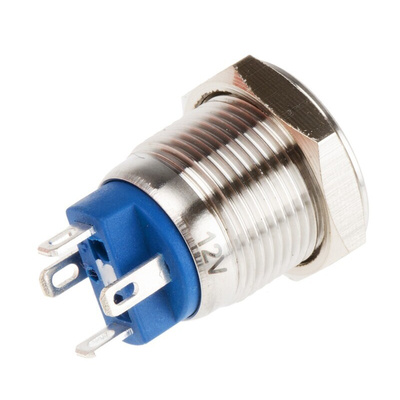

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, White LED, 12V ac/dc, IP65, IP67, Кнопочный переключатель

RS PRO Single Pole Single Throw (SPST) Momentary White LED Push Button Switch, IP65, IP67, 12 mm (Dia.), Panel Mounting, 12 V AC/DC

If you need a switch that's suitable for both indoor and outdoor installations, try this one from RS PRO. It has an Ingress Protection (IP) rating of IP65 and IP67, which means it's sealed against dust and can withstand water sprays and immersion for short periods of time. Its IK08 impact resistance rating means it's protected against vandalism, making this switch a good choice for use in public areas.


This durable switch is made of strong stainless steel with silver alloy contacts for maximum durability and conductivity. It comes with a white LED ring that illuminates when the switch is pressed, so you can quickly and easily tell when it's running.


You'll find this type of switch useful for applications such as vending machines, lift and security control panels and automatic doors. It's commonly used on trains and trams as well as in places like gyms and museums.

Features and Benefits

• Silver actuator colour


• Round actuator shape


• Flat actuator type


• Single pole single throw (SPST) contact configuration


• Contact current rating of 15 mA


• Contact voltage rating of 36 V DC


• Silver alloy contact material


• Illuminated


• Ingress Protection (IP) rating of IP65 and IP67


• White LED colour


• Panel mounting type


• Panel cut-out size of 12 mm (diameter)


• Momentary switch operation


• Quick-connect terminal type


• Voltage rating of 12 V AC/DC

Datasheet
