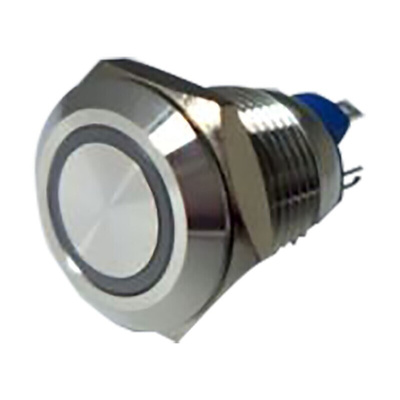

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, Yellow LED, 12V ac/dc, IP65, IP67, Кнопочный переключатель

RS PRO Single Pole Single Throw (SPST) Momentary Yellow LED Push Button Switch, IP65, IP67, 12 mm (Dia.), Panel Mounting, 12 V AC/DC

Need a reliable switch for your control panel? Turn to this momentary switch from RS PRO. It's dust-proof and resistant to water sprays and temporary immersion thanks to its IP65 and IP67 ratings. It also has a high impact resistance rating of IK08 for protection against vandalism. This means you can safely install it in busy indoor and outdoor spaces.


The switch has a stainless steel body that's highly corrosion-resistant for added durability. The yellow LED light illuminates when the switch is pressed for an easy-to-see way to tell when it's functioning.


This momentary switch is commonly used on automatic doors, vending machines and lift and security control panels. You'll often find it on trams and trains, as well as in museums and gyms.

Features and Benefits

• Silver actuator colour


• Round actuator shape


• Flat actuator type


• Single pole single throw (SPST) contact configuration


• Contact current rating of 15 mA


• Contact voltage rating of 36 V DC


• Silver alloy contact material


• Illuminated


• Ingress Protection (IP) rating of IP65 and IP67


• Yellow LED colour


• Panel mounting type


• Panel cut-out size of 12 mm (diameter)


• Momentary switch operation


• Quick-connect terminal type


• Voltage rating of 12 V AC/DC
