RS PRO Male RJ45 Connector, Cable Mount, Разъем

RS Pro Waterproof RJ45 Shielded Field Installable Plugs

From the trusted RS Pro brand, a range of superior quality waterproof field installable connectors. The shielded RJ45 plugs are housed in ruggedised plastic or metal housings which provide protection in the most demanding environments. Simple screw connection eliminates the need for any specialised tooling making them ideal for harsh environment applications.
Part number 111-6738 – plastic IP67
Part number 111-6742 – metal IP68
Part number 111-6743 – full metal IP68

Features and Benefits

IP67/68 rating
Temperature range -40°C to +80°C
No specialised tooling
Easy screw connection, saves time

Applications

Wireless outdoor AP
Outdoor LED and display lighting
Marine
Machine automation
Military

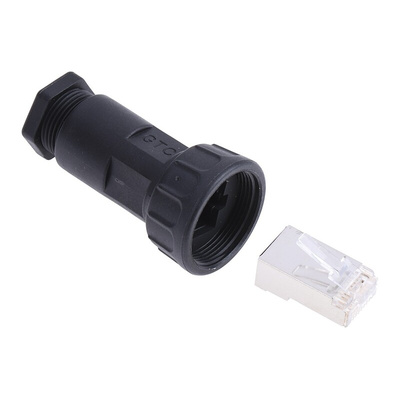

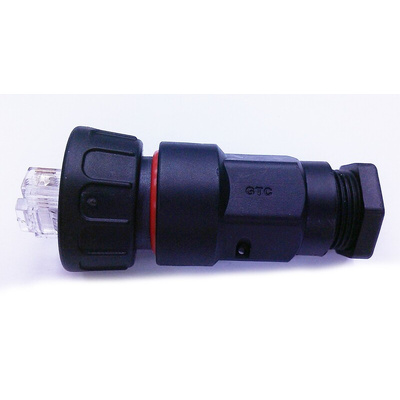

RS PRO, Male Field RJ45 Connector

Need a field RJ45 connector for rugged applications? This RS PRO connector comes with durable plastic shielding for protection in harsh environments. With screw-type termination, the connector eliminates the need for special tools and makes securing cable connections quick and easy in the field.

The RS PRO RJ45 connector is ideal for cable-mount applications and can handle a temperature range of -40°C to 80°C. The connector comes with an IP67 rating, which means it can withstand dusty, dirty and sandy conditions as well as immersion in water up to a depth of 1 metre for 30 minutes, making it suitable for marine applications. The copper-alloy contacts are gold plated to ensure excellent resistance to corrosion and rust. Part of the RS PRO series, this product is stringently tested for quality.

Shielded RJ45 ethernet connectors are commonly used in outdoor LED and display lighting, as well as marine and military applications.

Features and Benefits

• Shielded male RJ45 connector
• 50 mm length
• 25.4 mm width
• Screw termination saves time during installation
• IP67 waterproof rating
• Suitable for a temperature range of -40°C to 80°C
• Gold-plated copper-alloy contacts
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS PRO Datasheet
