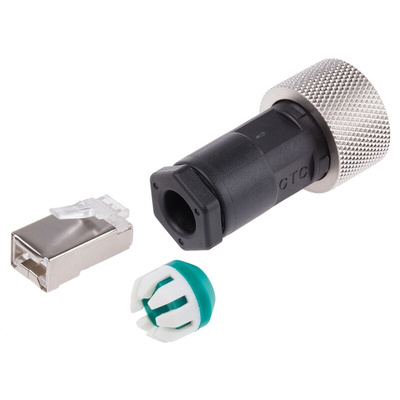

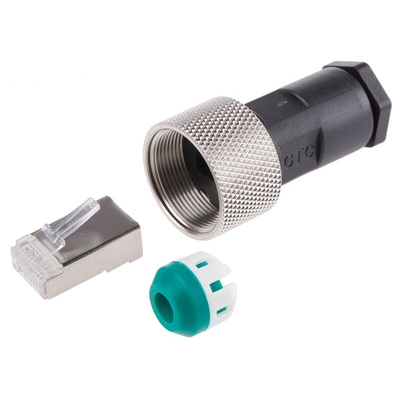

RS PRO Male RJ45 Connector, Cable Mount, Разъем

RS PRO Male Field RJ45 Connector

This male cable mounting RJ45 connector from RS PRO plugs your RJ45 cables into a power supply. The construction has an Ingress Protection (IP) rating of IP68, certifying it's able to withstand contact with dust, dirt and sand as well as water submersion up to 1.5 m for 30 minutes.
The connector has a screw connection design for reliable and easy installation without the need for other tools. Its rugged metal housing protects the terminal from denting and tears while the thermoplastic shaft resists build-ups of rust.
It's commonly used for wireless outdoor applications such as display lighting or machine automation. The connector's durable construction and wide temperature range of -40°C to +80°C allow it to operate in challenging environments.

Features and Benefits

• Straight body orientation
• Copper alloy contact material
• Gold contact plating
• Current rating of 1.5 A
• RJ45 connector ethernet connector type
• Male gender
• IP68 rating
• Length of 50 mm
• Width of 25.4 mm
• Maximum operating temperature of +80°C
• Minimum operating temperature of -40°C
• Cable mounting type
• Straight orientation
• Shielded shield type
• Screw termination method

RS Pro Datasheet

Dimensional Drawing
