RS PRO RJ45 Female 90° Coupler, Cat5e, Shielded

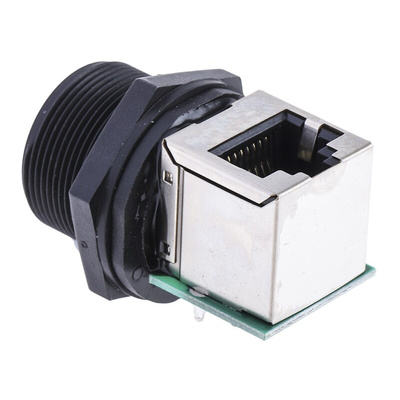

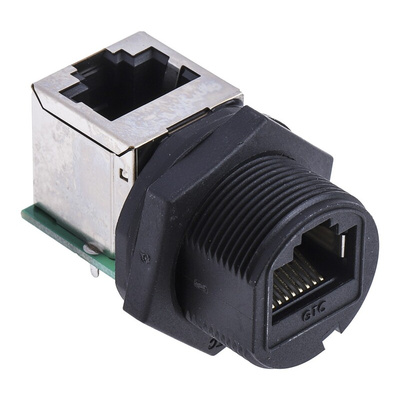

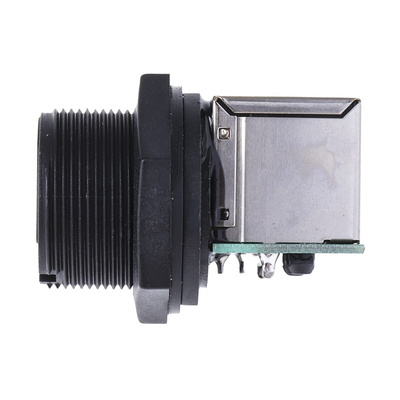

RS PRO Waterproof RJ45 Panel Mount Feed Through Connector

From RS PRO, this waterproof RJ45 panel mounting socket is ideal for applications in challenging environments. With a robust bulkhead and screw on jam nut, the RJ45 connector can fit most panels, and incorporates a silicone O-ring to create a sealed and durable connector point for networking applications.

The connector is also shielded, and so suitable for use in environments where EMI interference might be a concern. For Cat5e ethernet connections, this plastic panel-mount feed-through connector is a high-quality solution.

Features and Benefits

• Socket to socket Right Angled feed through connector
• IP67 rated waterproof connector
• 13/16-28 UN thread and have a recommended panel thickness range of 0.8 mm to 4 mm
• Easy to install onto predrilled panels and machine housing
• Wide operating temperature range -40°C / + 105°C


Applications

RJ45 connectors and cables are typically used for internet connections, forming either local area (LAN) or wide area (WAN) networks. As it is protected from environmental ingress, it is suitable even for outdoor purposes, which means it has a wide range of uniquely challenging applications, such as;

• Wireless outdoor AP
• Outdoor LED and display lighting
• Marine
• Automotive
• Military

Environment

This RJ45 connector is rated IP67, which means it has maximum protection from dust and particle ingress, and waterproof even when completely immersed in water up to 1 meter, for a half hour period of time.

Why RS PRO?

RS PRO aims to be your go-to brand where dependability and affordability are a must. From must-have tools to component essentials, RS PRO employ vigorous in-house testing to assure maximum quality. Where you see the RS PRO brand, you know you're getting components you can trust.

When it comes to electronic connectors, RS PRO supplies a huge variety of solutions. Whether you're connecting industrial machinery in an automated factory or implementing IT solutions in a commercial office, RS PRO is with you every step of the way.

Dimensional Drawing

RS PRO Datasheet
