RS PRO Straight, Panel Mount, Socket Type Micro AB IP67 USB Connector, Разъем

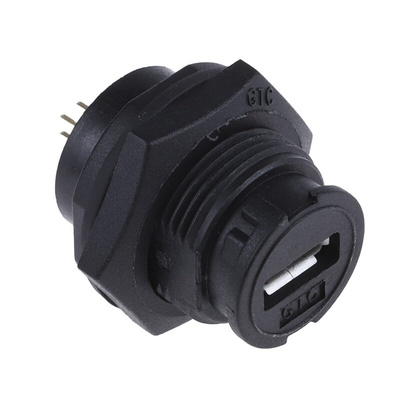

RS PRO USB Connector, Panel Mount Micro Socket AB IP67

Looking for a quality waterproof USB jack? This Micro AB socket from RS PRO is manufactured from rugged thermoplastic materials, making it ideal for harsh environments where water and dust need to be kept out. IP67 rated, the jack will stay dry inside if submerged a metre deep for half an hour.

This USB connector has a recommended panel thickness of 0.8 mm to 3.0 mm along with a 16 mm panel hole size. Gold-plated contacts ensure quality data transmission and shielding protects the signal from electromagnetic interference. The straight orientation makes for easy installation.

The socket has been stringently tested against international standards, so you can be sure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). It's also fully RoHS-compliant. You'll find it suitable for demanding applications in the marine or military sectors.

Features and Benefits

• Waterproof USB micro AB connector
• IP67 rating means it can be submerged up to half an hour
• Recommended panel thickness of 0.8 mm to 3.0 mm
• 16 mm panel hole size
• Gold-plated contacts ensure conductivity

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet

Dimensional Drawing
