RS PRO Straight, Panel Mount, Socket Type A IP67 USB Connector, Разъем

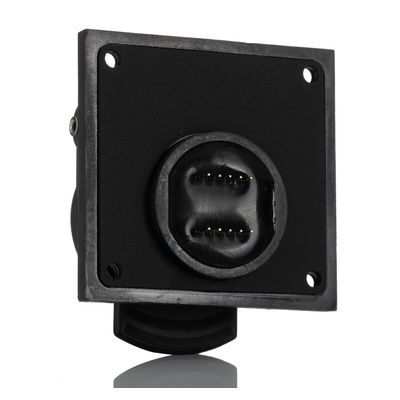

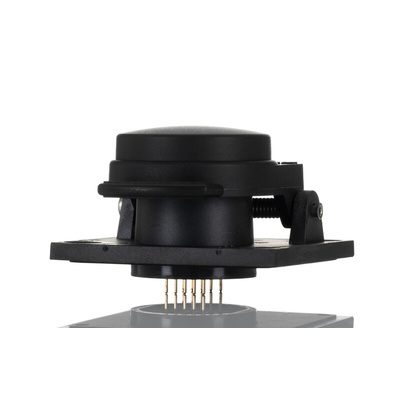

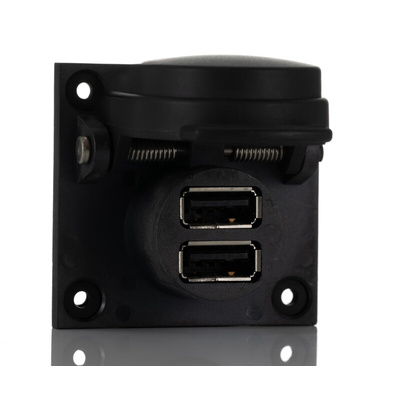

RS PRO Flange Mount Dual USB A Connector (IP67)

A highly reliable dual USB A connector designed for flange mounting and suitable for connection or charging a wide range of devices and equipment.
Featuring an integral cap manufactured from robust thermoplastic capable and featuring Copper Alloy contacts with a Gold plating and a Nickel plated Copper Alloy shell for excellent conductivity, corrosion protection and wear resistance.
Suitable for panel and cable mounting and rated to IP67 for protection from dust and dirt this USB socket is versatile, tough and hardwearing and with the integral protective dust cap it is suitable of harsh and dirty environments.

Features and Benefits

• 2 x USB A flange mount socket


• Protective dust cap


• Gold plated copper contacts for corrosion resistance


• Minimum operating temperature of -40°C


• Maximum operating temperature of +105°C


• 1.5 A current rating


• IP67 waterproof rating


• Insulation resistance of 100 MΩ


• Contacts resistance of 30 mΩ


• Dimensions of 48 x 46 x 27 mm


• C4 panel


• IP67 rated


• Countersunk screw holes

Standards and Approvals: RoHS compliant
