RS PRO Straight, Panel Mount, Socket Type A IP65 USB Connector, Разъем

RS PRO, Straight, Panel Mounting, Socket Type A IP67 USB Connector

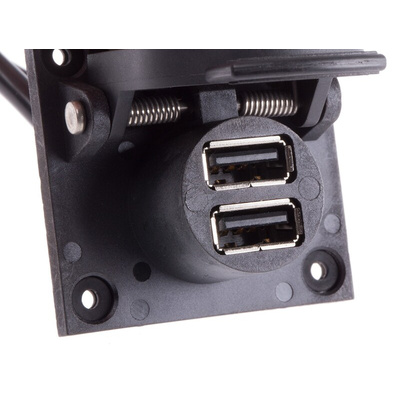

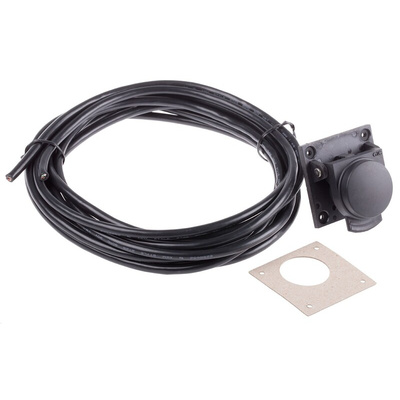

Looking for a high-quality standard USB panel mounting connector? This RS PRO USB socket connector has a dualUSB A receptacle with an integral cap and a two-meter long cable in waterproof housing for added protection and durability.
The unit is made from rugged thermoplastic material with an IP67 (Ingress Protection) rating to ensure it's hardwearing, shock-resistant and protected against dust, sand and water. This means you can use the connector in harsh environments and for outdoor applications.
You can see this type of robust connector commonly used in automotive, marine and military industries. This product conforms to the Restriction of Hazardous Substances (RoHS) standard so it includes only minimal amounts of any harmful materials. It's also rigorously tested against electrostatic discharge (ESD) criteria and conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, so you can be sure the hazard of ESD is reduced.

Features and Benefits

• Straight body orientation
• USB connector type
• Copper alloy contact material
• Gold contact plating
• Current rating of 2.1 A
• Dimensions of 30.2 (length) x 46 (depth) x 48 mm (width)
• Female gender
• IP (Ingress Protection) rating of IP67
• Maximum operating temperature of +105°C
• Minimum operating temperature of -40°C
• Panel mounting type
• Straight orientation
• GTC sealed series
• Shielded type
• USB type A

RS Pro Datasheet

Dimensional Drawing
