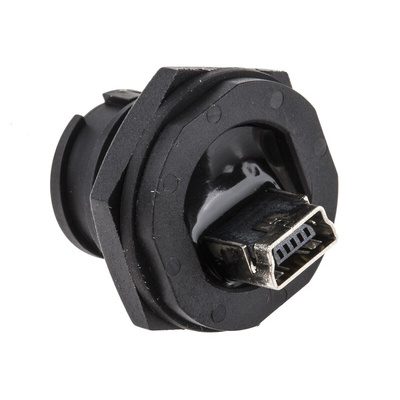

RS PRO Straight, Panel Mount, Socket to Socket Type Mini B to Mini B IP67 USB Connector, Разъем

RS PRO Straight Panel Mount Connector, Mini B to Mini B Receptacle Coupler

This RS PRO mini USB-B connector plug is a robust unit you can use in harsh environments and outdoor applications. Connectors like this one are often used in outdoor LED displays as well as in the automotive, marine and military industries.
The product is manufactured from thermoplastic material with an IP67 (Ingress Protection) rating, so you can rest assured it's well protected against dust and sand as well as water. It's a panel mounting connector, which means you can secure it directly to your equipment panel. The contacts are gold-plated to guarantee durability and a secure connection.
This product conforms to Restriction of Hazardous Substances (RoHS) standards and includes only minimal amounts of any harmful materials. It's also rigorously tested against electrostatic discharge (ESD) criteria and meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, so you can rest assured the hazard of discharge is minimised.

Features and Benefits

• Straight body orientation
• USB connector type
• Copper alloy contact material
• Gold contact plating
• Dimensions of 20.3 (length) x 20.6 (width) x 23.8 mm (depth)
• Male gender
• IP (Ingress Protection) rating of IP67
• Panel mounting type
• Straight orientation
• GTC sealed series
• Shielded type
• Mini USB B type
• Gender A Front and Gender B Rear

RS Pro Datasheet

Dimensional Drawing
