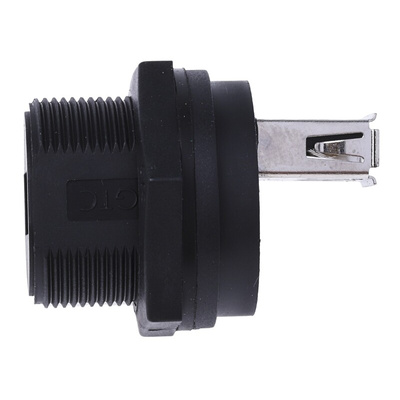

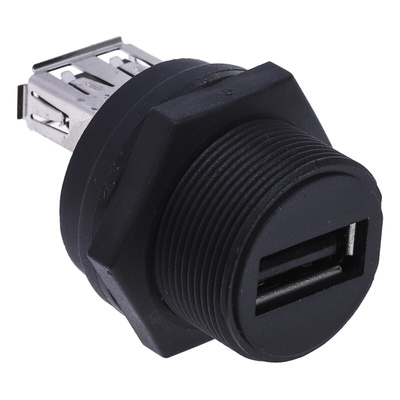

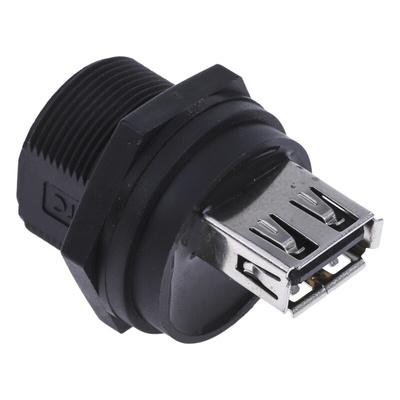

RS PRO Straight, Panel Mount, Socket Type A 2.0 IP67 USB Connector, Разъем

RS PRO Panel Mount USB A Socket to USB A Male Coupler

A highly reliable USB A coupler designed for panel mounting featuring a Female Type A socket to a female Type A socket enabling male to male connection or as a USB extender.
Manufactured from robust thermoplastic capable and featuring Copper Alloy contacts with an Aluminium plating and a Nickel plated Copper Alloy shell for excellent conductivity, corrosion protection and wear resistance.
Suitable for panel mounting and rated to IP67 for protection from dust and water the USB socket is versatile, tough, hardwearing and suitable for use in harsh environments.

Features and Benefits

• Female to Female USB A connector


• Aluminium plated copper contacts for corrosion resistance


• Minimum operating temperature of -40°C


• Maximum operating temperature of +80°C


• 1.5 A current rating


• IP67 waterproof rating


• Insulation resistance of 100 MΩ


• Contacts resistance of 30 mΩ


• Dimensions of 29.2 x 25.4 x 22 mm


• C3 panel


• IP65 rated


• Suitable wire size of 22 -28 AWG

Standards and Approvals: RoHS compliant

Why RS PRO?

Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.

Dimensional Drawing

RS PRO Datasheet
