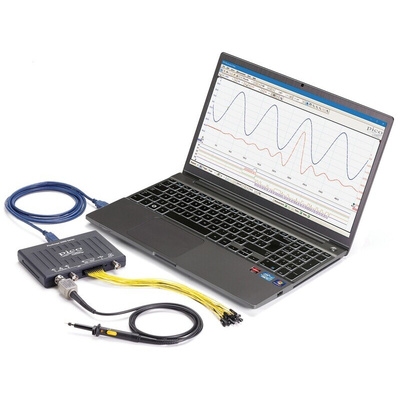

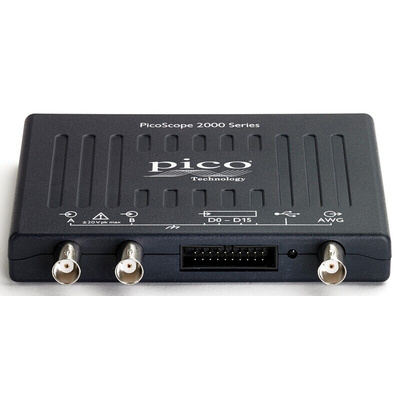

PicoScope 2205A MSO 2-channel 25 MHz PC Oscilloscope

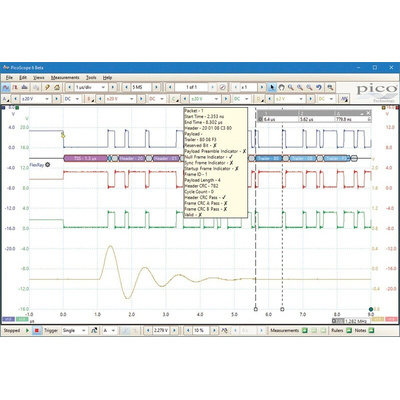

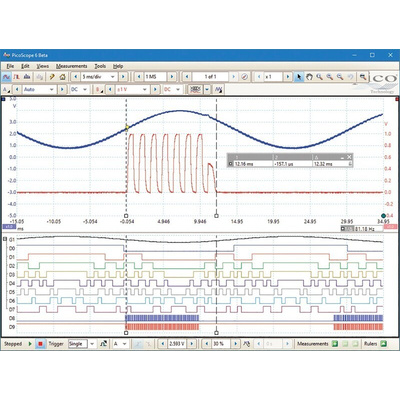

PicoScope 2205A MSO is a 25 MHz 2-channel mixed signal oscilloscope which also functions as a 16-channel logic analyser, sampling at a maximum of 500 MS/s. It features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. The 2205A MSO has a buffer memory of 48 kS and a 1 MHz AWG signal generator. Automatic measurements are available in scope mode and in spectrum mode. Serial decoding is a standard PicoScope feature and includes SPI, I2C, FlexRay, CANbus, LINbus and ARINC. The 2205A MSO offers excellent waveform visualisation and measurement, as well as fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots. The PicoScope 2205A MSO takes advantage of the computing, display and communication power of an attached laptop or desktop PC.
Features and Benefits
Powerful, portable, compact
2 analog/16 digital channels
25 MHz bandwidth
Built-in arbitrary waveform generator
500 MS/s, 48 kS buffer
USB connected and powered
Serial decoding/FFT advanced waveform analysis included
Excellent signal integrity
Dimensions 130 x 104 x 18.8 mm
Weight <200 g
Areas of Application
Design
Test
Education
Service
Monitoring
Fault-finding
Repair
Note
Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www.picotech.com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish. Extra and/or replacement probes, cable and test clips are available separately.
Standards
EN 61010-1:2010
Supplied with
USB 2.0 cable, passive probes (x2), digital input cable, logic test clips (x20), quick start guide and software
Pico PC Based Instruments
