PicoScope 2405A, Pico Technology 2405A PicoScope 2000 Series Analogue PC Based Oscilloscope, 4 Analogue Channels, 25MHz - UKAS Calibrated

PicoScope 2405A 4-channel 25 MHz PC Oscilloscope

PicoScope 2405A is a 25 MHz 4-channel oscilloscope which samples at a maximum of 500 MS/s. It features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. The 2205A has a buffer memory of 48 kS and a 1 MHz AWG signal generator. Automatic measurements are available in scope mode and in spectrum mode. Serial decoding is a standard PicoScope feature and includes SPI, I2C, FlexRay, CANbus, LINbus and ARINC. The 2205A offers excellent waveform visualisation and measurement, as well as fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots. The PicoScope 2205A takes advantage of the computing, display and communication power of an attached laptop or desktop PC.

Features and Benefits

Powerful, portable, compact
4 analog channels
25 MHz bandwidth
Built-in arbitrary waveform generator
500 MS/s, 48 kS buffer
USB connected and powered

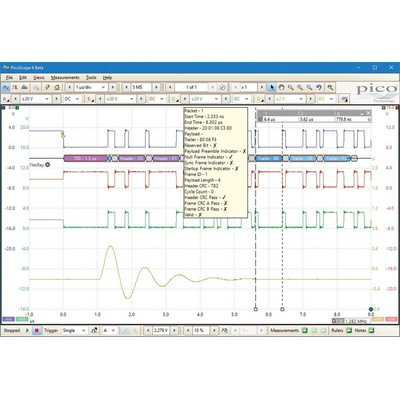

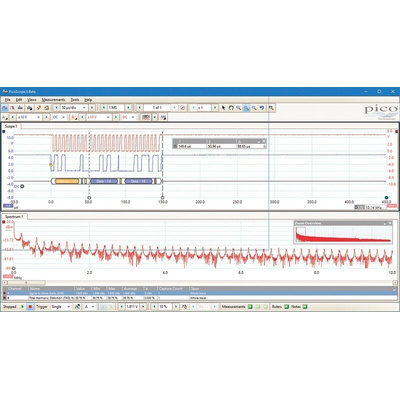

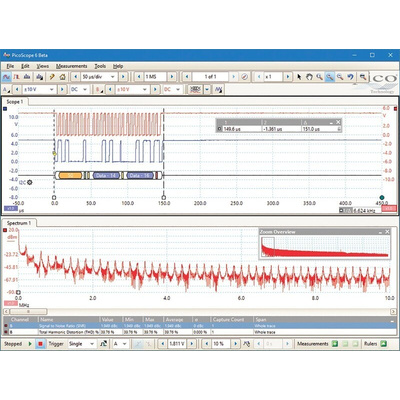

Serial decoding/FFT advanced waveform analysis included
Excellent signal integrity
Dimensions 130 x 104 x 18.8 mm
Weight <200 g

Areas of Application

Design
Test
Education
Service
Monitoring
Fault-finding
Repair

Note

Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www.picotech.com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish. Extra and/or replacement probes, cable and test clips are available separately.

Standards

EN 61010-1:2010

Supplied with

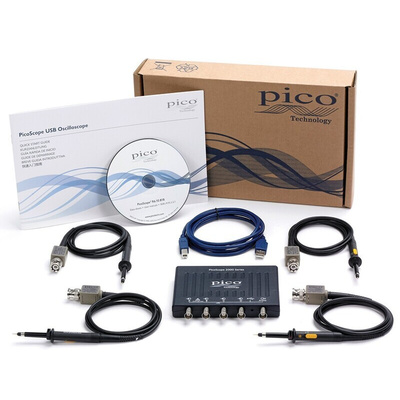

USB 2.0 cable, passive probes (x4), quick start guide. Software is downloadable, full details enclosed in box

Pico PC Based Instruments

Datasheet

PicoScope2000 Datasheet
