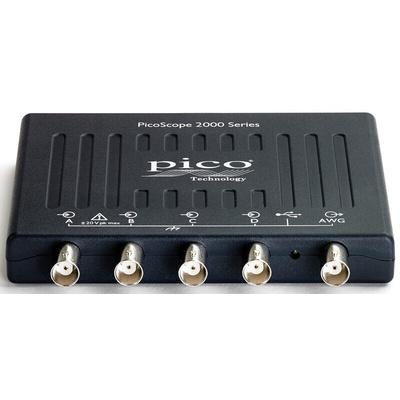

PicoScope 2406B 4-channel 50 MHz PC Oscilloscope

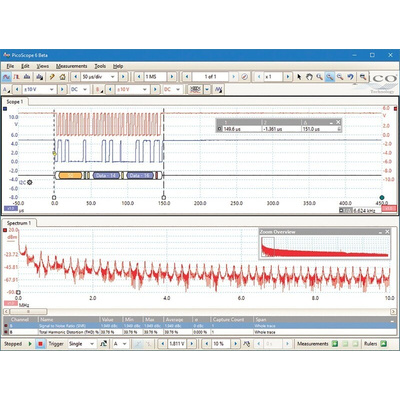

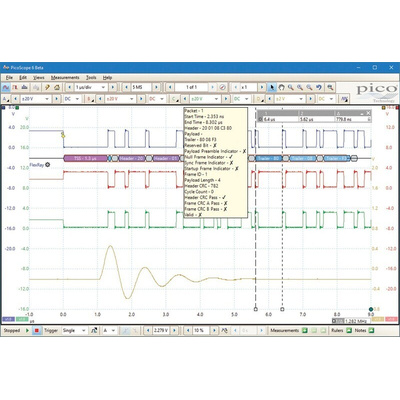

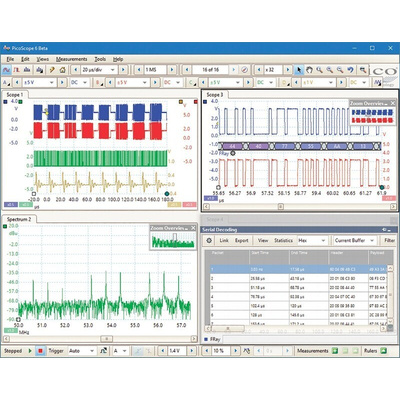

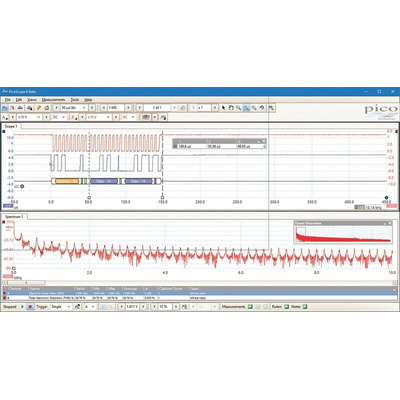

PicoScope 2406B is a 50 MHz 4-channel oscilloscope which features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. The 2406B has a maximum sampling rate of 500 MS/s, buffer memory of 32 Msamples and 1 MHz AWG signal generator. Fifteen automatic measurements are available in scope mode and another eleven in spectrum mode. Serial decoding is a standard PicoScope feature and includes SPI, I2C, FlexRay, CANbus, LINbus and ARINC. The 2406B offers excellent waveform visualisation and measurement, as well as fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots. The PicoScope 2406B takes advantage of the computing, display and communication power of an attached laptop or desktop PC – now incorporating pinch, zoom and drag capabilities.

Features and Benefits

Powerful, portable, compact
4 analog channels
50 MHz bandwidth
Built-in arbitrary waveform generator
1 GS/s, 32 MS buffer
USB connected and powered
Serial decoding/FFT advanced waveform analysis included
Excellent signal integrity
Dimensions 130 x 104 x 18.8 mm
Weight <200 g

Areas of Application

Design
Test
Education
Service
Monitoring
Fault-finding
Repair

Note

Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www.picotech.com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish. Extra and/or replacement probes, cable and test clips are available separately.

Standards

EN 61010-1:2010

Supplied with

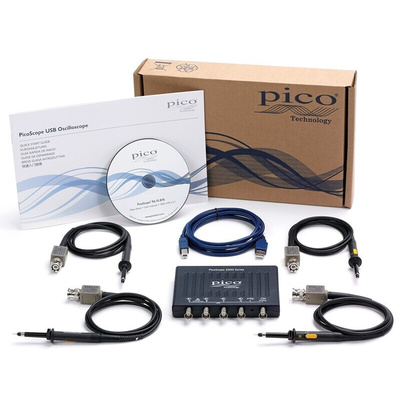

USB 2.0 cable, passive probes (x4), quick start guide, software and reference CD

Pico Technology Oscilloscope

The Pico Technology 2000 series oscilloscope has a bandwidth of 50MHz. It is a 4-channel, PC based, small, lightweight, modern oscilloscope which is an alternative to benchtop devices. It is used on the bench, so it takes up little space and can sit right next to the circuit under test. PicoScope6 software (included) enables high-end features such as serial decoding and mask limit testing to be incorporated as a standard. It has a sample rate of 1GS/s. The USB connection facilitates printing, copying, saving and emailing field data. The high-speed USB interface provides fast data transfer and USB power eliminates the need to carry around a bulky external power supply.
Note:
Software supplied includes PicoScope6, Windows and Linux SDK, example programs C, Visual Basic, Excel VBA, LabVIEW. PicoScope software PC requirements are Microsoft Windows XP (SP3), Windows Vista, Windows 7 or Windows 8 (not Windows RT) 32-bit or 64-bit.
Supplied with:
60MHz probes (2), USB cable, Quick Start guide, software and reference CD
Pico PC based instruments

Features and Benefits

Benchtop performance in pocket-sized scope
Simple, low-cost solution
Fast real-time sampling rates
Equivalent-time sampling (ETS) mode
Built-in arbitrary waveform generator
Advanced digital triggers
Persistence display modes
USB connected and powered
Free software upgrades
Mask limit testing
Serial bus decoding
10,000 waveform circular buffer
Buffer memory 32MS
AWG bandwidth 1Mhz

Applications

Design
Test
Education
Servicing
Monitoring
Fault finding
Repairs

Certifications

EN 61010-1:2010
WEEE certified
EN61326-1:2006
FCC Part 15 Subpart B

Pico PC Based Instruments

Datasheet

PicoScope2000 Datasheet
