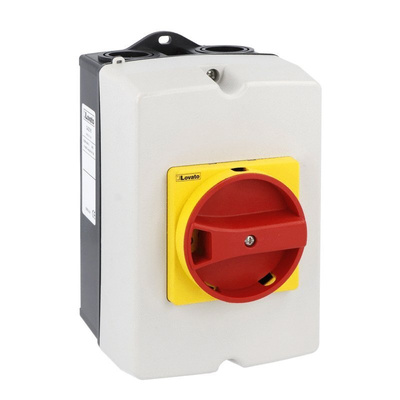

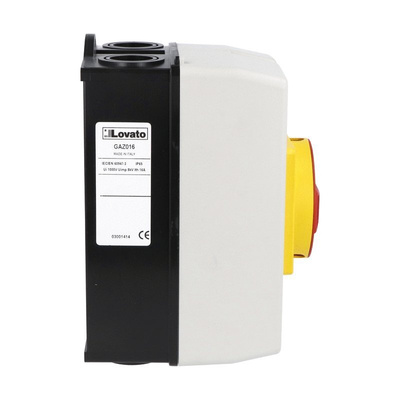

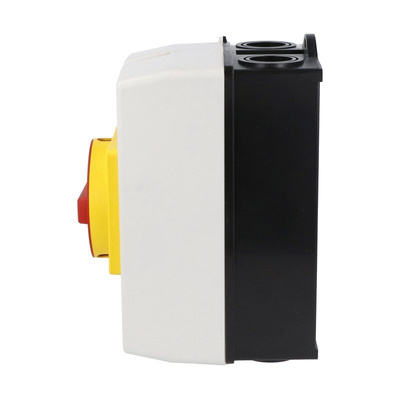

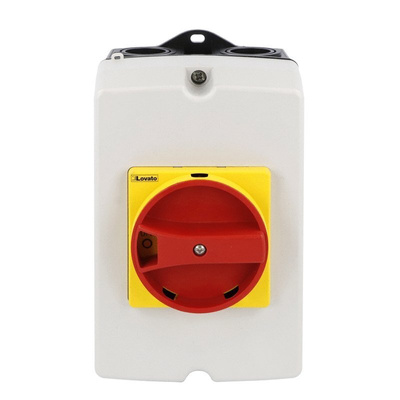

GAZ016, Lovato 3P Pole Isolator Switch - 16A Maximum Current, IP65

GAZ Series Enclosed Switch Disconnectors

Lovato electric GAZ series enclosed switch disconnectors are a compact size with a versatile offer. The GAZ series switch disconnectors are suitable for both small domestic installations as well as larger industrial applications. With a wide range of accessories that are simple and quick to install with no tools needed.

16A to 160A versions
Compact and modular size
Screw or 35mm DIN rail fixing
Padlockable in 0 position with no extra accessory
Rated insulation voltage: 1000V

Lovato GA Series Isolator Switch, 600VAC, 3NO - GAZ016

This isolator switch by Lovato is a high quality electrical component designed for use in demanding industrial environments. With an IP65 rating, this switch is protected against dust and water ingress, making it suitable for both indoor and outdoor applications. The 16A current rating ensures reliable performance even under heavy loads. The red and yellow handle provides clear operation indication, while the screw terminal design allows for easy installation. With a voltage rating of 600V AC, this switch is suitable for a wide range of electrical systems.

Features & Benefits

• IP65 rated for protection against dust and water ingress
• 16A current rating for reliable performance under heavy loads
• Red and yellow handle for clear operation indication
• Screw terminal design for easy installation
• 600V AC voltage rating for versatile application

Applications

• Ideal for use in industrial automation systems
• Suitable for electrical panels in manufacturing plants
• Perfect for motor control applications in mechanical industries
• Great for use in high-current electrical circuits

Can it be used in outdoor applications?

Yes, the isolator switch is IP65 rated, making it suitable for outdoor use.

Will it work in high-current circuits?

Yes, the switch has a 16A current rating, making it ideal for high-current applications.

Is it easy to install?

Yes, the switch features a screw terminal design for easy installation.

Lovato Switch Disconnectors & Accessories

Datasheet

Datasheet

Instruction Sheet - GAZ016
