Lascar EL-21CFR-1-LCD Data Logger for Temperature Measurement, Логгер

Lascar EasyLog 21CFR Compatible Temperature USB Data Logger with LCD Screen

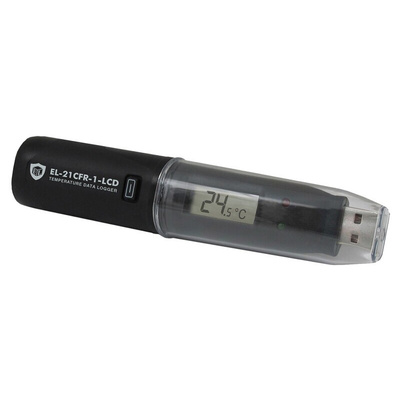

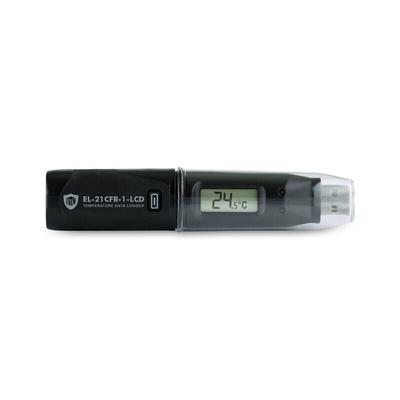

Lascar EL-21CFR-1-LCD is a standalone data logger capable of measuring and storing more than 16 000 temperature readings over a -35 to +80 °C (-31 to +176 °F) range, with a resolution of 0.5 °C (1 °F). Setting up the logger and viewing downloaded data is easy, by plugging the data logger into the USB port of a PC and using EasyLog 21CFR software. Data can then be graphed, printed and exported to other applications for detailed analysis. The encrypted data has full audit tracking to comply with the requirements of 21CFR Part 11. The LCD can show a variety of temperature information. At the touch of a button, the user can cycle between current, maximum and minimum stored values for temperature.

Features and Benefits

-35 to +80 °C (-31 to +176 °F) measurement range
Internal resolution 0.5 °C (1 °F)
Accuracy (overall error) ±1 °C (±2 °F)
Stores more than 16 000 readings
EasyLog 21CFR software available as a free download
Logging rates between 10 seconds and 12 hours
High contrast LCD, with two and a half digit temperature display function
Immediate, delayed and push-to-start logging
User-programmable alarm thresholds
Use as part of a 21CFR Part 11 compliant system
Protected to IP67 when cap fitted
Dimensions 120 x 25 x 22 mm

Areas of Application

Pharmaceutical fridge monitoring
Environmental and weather monitoring
Agricultural and livestock
Food & drink industries
Building & site monitoring
HVAC

Note

Lascar EasyLog 21CFR software is freely downloadable from www.EasyLog21CFR.com. It is easy to install, easy to use and compatible with all latest versions of Windows (7, 8 & 10 - both 32-bit & 64-bit). Data collected from the logger and associated audit trails is stored in an encrypted format which cannot be edited. EasyLog 21CFR software is not compatible with Mac or Linux.

Supplied with

Lithium metal battery BAT 3V6 1/2AA, EasyLog 21CFR software (downloadable)

Datasheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Lithium Battery Test Document
